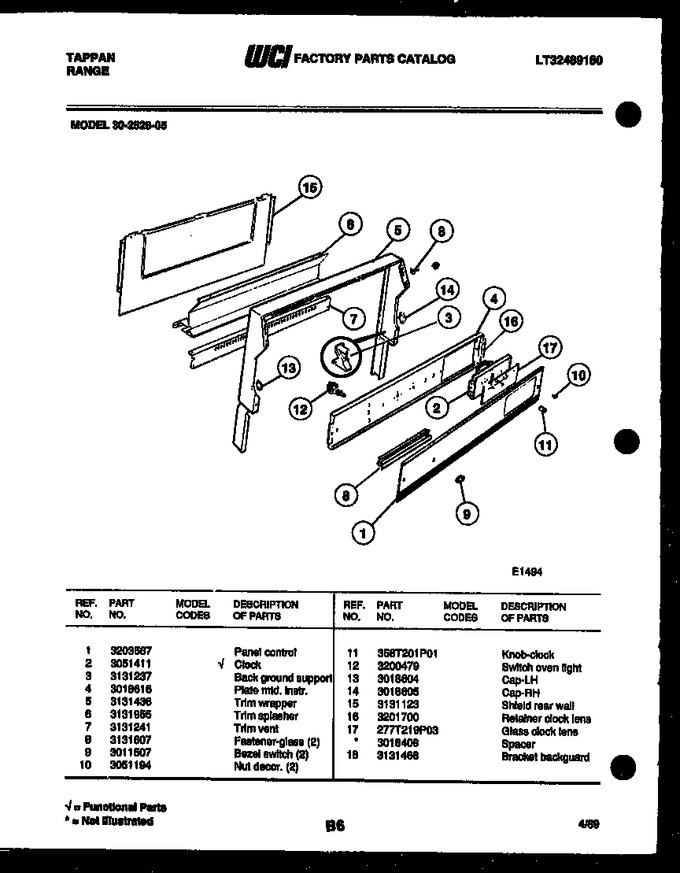

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203567 | Panel Control |
|
- | |||||
| 2 | 3051411 | Clock |
|
- | |||||
| 3 | 3131237 | Back Ground Support |
|
- | |||||
| 4 | 3018616 | Plate-mtd Instr |
|
- | |||||
| 5 | 3131436 | Trim Wrapper |
|
- | |||||
| 6 | 3131955 | Trim-splasher |
|
- | |||||
| 7 | 3131241 | Trim-vent |
|
- | |||||
| 8 | 3131607 | Fastener, Glass (2) |
|
- | |||||
| 9 | 3011507 | Bezel - Switch (2) |
|
- | |||||
| 10 | 3051194 | Nut - Decor (2) |
|
- | |||||
| 11 | 358T201P01 | Knob, Clock |
|
- | |||||
| 12 | 3200479 | Switch-oven Light |
|
- | |||||
| 13 | 3018604 | Cap-lh |
|
- | |||||
| 14 | 3018605 | Cap-rh |
|
- | |||||
| 15 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 16 | 3201700 | Retainer Clock Lens |
|
- | |||||
| 17 | 277T219P03 | Glass-clock Lens |
|
- | |||||
| 18 | 3131468 | Bracket, Backguard |
|
- | |||||
| 17A | 3016408 | Spacer (non-illustrated) |
|
- |
