New Model Search:

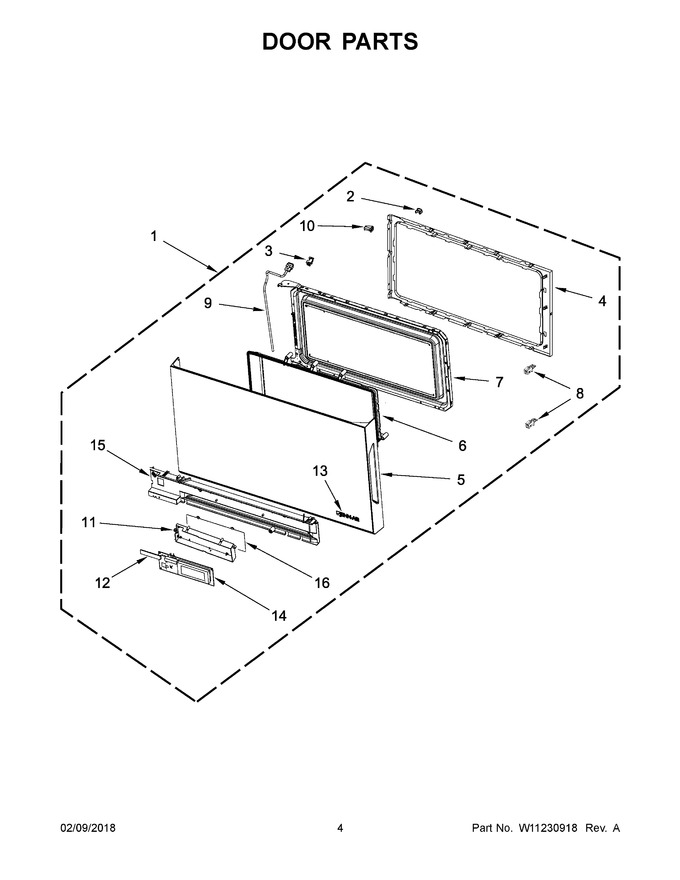

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10893390 | Door, Complete (stainless) |
|
Immediately | $ 467.91 | ||||
| 2 | W10542546 | Cover, Screw |
|
$ 76.13 | |||||
| 3 | W10770972 | Holder, Door Cable |
|
- | |||||
| 4 | W10540764 | Frame, Inner |
|
$ 85.24 | |||||
| 5 | W10861385 | Door, Outer (stainless) |
|
- | |||||
| 6 | W10478647 | Plate, Steam Protection |
|
$ 82.94 | |||||
| 7 | W10568846 | Body, Door (with Glass) |
|
$ 215.51 | |||||
| 8 | W10740455 | Hook, Door |
|
Immediately | $ 48.17 | ||||
| 9 | W10658871 | Wire, Door Control Cable |
|
$ 24.06 | |||||
| 10 | W10643976 | Stopper, Door |
|
- | |||||
| 11 | W10770970 | Holder, Ui |
|
- | |||||
| 12 | W10509362 | Cable, Touch Sensor |
|
- | |||||
| 13 | WPW10214168 | Badge (stainless) (Replaces: W10214168) |
|
$ 73.67 | |||||
| 14 | W11230993 | Pcba, User Interface (Replaces: W11202850) |
|
- | |||||
| 15 | W10617743 | Cover, Ui |
|
- | |||||
| 16 | W10540298 | Plate, Ui Insulation |
|
- |
