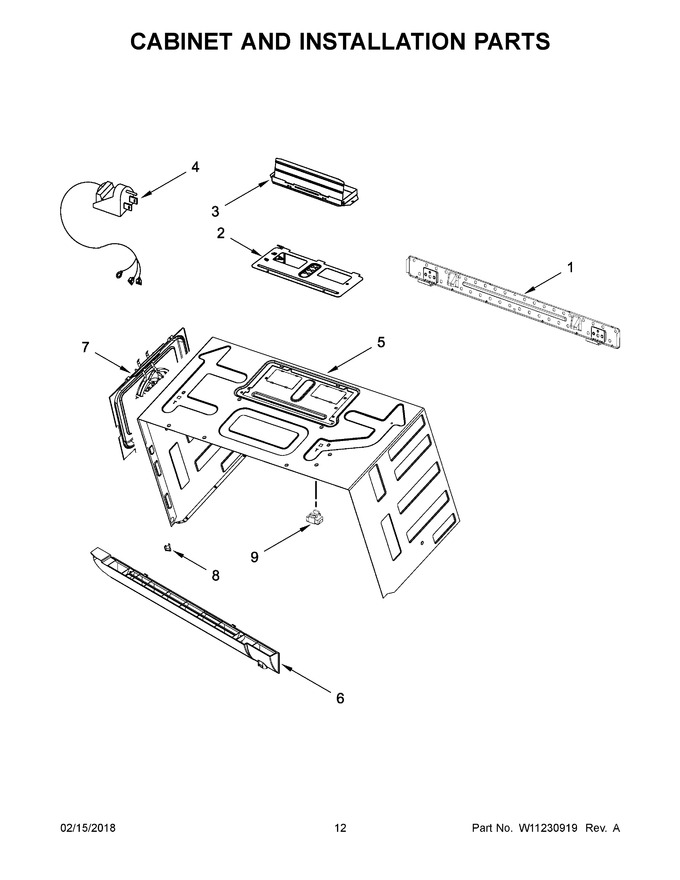

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting |
|
Immediately | $ 21.16 | ||||
| 2 | W10625423 | Cover, Fan Motor |
|
$ 69.87 | |||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 65.74 | ||||
| 4 | W10708076 | Cord, Power |
|
$ 18.48 | |||||
| 5 | W10818229 | Case, Outer (black) (Replaces: W10571408) |
|
$ 228.66 | |||||
| 6 | W10701697 | Grille, Vent (black) |
|
$ 59.88 | |||||
| 7 | W10722311 | Assembly, Convection Motor And Fan |
|
$ 168.46 | |||||
| 8 | W10599629 | Thermostat, Convection |
|
$ 30.72 | |||||
| 9 | W10596040 | Assembly, Mounting Nut |
|
Immediately | $ 8.30 | ||||
| NI | W10571453 | Insulation, Side |
|
- | |||||
| NI | W10533304 | Miscellaneous Parts, Harness, Control |
|
- | |||||
| NI | W10571451 | Insulation, Top |
|
- | |||||
| NI | W10571450 | Insulation, Back |
|
- | |||||
| NI | W10539840 | Miscellaneous Parts, Harness, Pcba Ground Wire |
|
$ 21.50 | |||||
| NI | W10834331 | Miscellaneous Parts, Harness, Headlamp And Turntable |
|
$ 127.47 | |||||
| NI | W11023213 | Miscellaneous Parts, Harness, Main |
|
- | |||||
| NI | WP8169704 | Miscellaneous Parts, 1/4-20x3" Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| NI | W10190020 | Miscellaneous Parts, Template, Upper (english & Spanish) |
|
$ 56.21 | |||||
| NI | W10190018 | Miscellaneous Parts, Template, Upper (english & French) |
|
Immediately | $ 6.47 | ||||
| NI | W10821385 | Miscellaneous Parts, Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 88.90 | ||||
| NI | W10892377 | Insulation, Bottom |
|
- |
