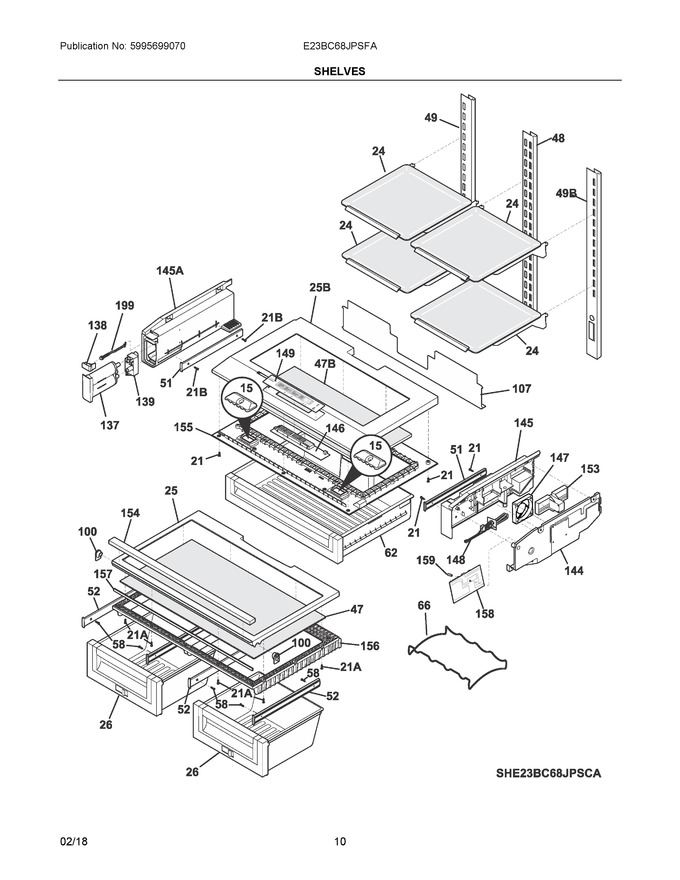

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 15 | 241891104 | Light-led |
|
- | |||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 24 | 241839902 | Shelf-glass, Formed |
|
$ 427.36 | |||||
| 25 | 241802205 | Frame-crisper Cover, Upper |
|
$ 119.07 | |||||
| 26 | 241772808 | Pan-crisper |
|
$ 269.22 | |||||
| 47 | 241768802 | Glass-crisper Frame |
|
$ 77.36 | |||||
| 48 | 241774201 | Channel-shelf Mtg, Center |
|
$ 43.73 | |||||
| 49 | 241773802 | Channel-shelf Mtg, Side, Lh |
|
- | |||||
| 51 | 241816101 | Slide-deli |
|
$ 152.38 | |||||
| 52 | 241769002 | Slide-crisper Cover |
|
$ 119.78 | |||||
| 58 | 241941202 | Screw, 8-18 X 3/8 |
|
$ 15.17 | |||||
| 62 | 241827206 | Pan-deli |
|
$ 248.49 | |||||
| 66 | 241748901 | Rack-wine |
|
$ 77.97 | |||||
| 100 | 241768601 | Support-crspr Cover |
|
$ 19.13 | |||||
| 107 | 241925901 | Cover-water Tank |
|
$ 84.68 | |||||
| 137 | 242175101 | Filter-water, Water, Carbon Cassette, Front, With O'rings |
|
- | |||||
| 138 | 241885901 | Button-filter Release |
|
$ 28.35 | |||||
| 139 | 240396002 | Base-water Filter |
|
Immediately | $ 119.66 | ||||
| 144 | 241803901 | Cover-deli Air Control |
|
- | |||||
| 145 | 241803803 | Housing-deli Air Control |
|
$ 126.21 | |||||
| 146 | 241958405 | Control-electronic, Ptd (Replaces: 241958403) |
|
$ 143.18 | |||||
| 149 | 242025902 | Overlay, Electronic, Membrane Switch |
|
$ 184.28 | |||||
| 154 | 241879902 | Trim-crisper Cover |
|
$ 39.44 | |||||
| 155 | 241803403 | Frame-deli Cover, Lower |
|
$ 148.13 | |||||
| 156 | 241872006 | Frame-crisper Cover, Lower |
|
$ 119.78 | |||||
| 157 | 241872201 | Beam Support |
|
$ 53.85 | |||||
| 158 | 241955004 | Board-main Power, Ptd |
|
$ 245.23 | |||||
| 159 | 241815401 | Cap, Pcba Hold Down |
|
- | |||||
| 199 | 240397501 | Rod |
|
$ 55.57 | |||||
| 145A | 242058709 | Support, Rail |
|
$ 90.01 | |||||
| 147A | 241825704 | Fan Assembly, Motor, With Blade |
|
$ 289.58 | |||||
| 148A | 241782001 | Heater-ptd, 115 V |
|
$ 194.90 | |||||
| 153A | 241775301 | Motor-damper |
|
$ 227.24 | |||||
| 21A | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50, (2) (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 21B | 241953902 | Screw, Quad Hilo, #8-18 X 0.25 (Replaces: 241953907) |
|
Immediately | $ 17.11 | ||||
| 25B | 241803303 | Frame-deli Cover, Upper |
|
$ 223.72 | |||||
| 47B | 241967401 | Glass, 2 Pane Insulatd |
|
$ 225.39 | |||||
| 49B | 241774301 | Channel-shelf Mtg, Side, Rh |
|
$ 43.05 | |||||
| NI | 241695904 | Screw, Type Ab, #10-16 X .5 |
|
$ 14.41 | |||||
| NI | 241936201 | Damper-rubber, Ptd Fan |
|
- | |||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NI | 241835402 | Harness-wiring, Mixing Valve |
|
$ 23.39 | |||||
| NI | 807332437 | Label, Energy Guide |
|
- | |||||
| NIA | 5304521780 | Harness-power Ptd (Replaces: 241822602) |
|
$ 23.51 | |||||
| NIA | 240398401 | Spring-filter Release Rod |
|
$ 59.16 | |||||
| NIA | 241809203 | Trim-shelf, Hand Grip |
|
- | |||||
| NIA | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NIA | 241858401 | Screw, #6 X 1/2 Hilo |
|
$ 13.05 | |||||
| NIB | 242130101 | Clip, Retainer, Ptd Board |
|
- | |||||
| NIBA | 241862501 | Harness-wiring, Ptd Main W/led |
|
$ 47.48 | |||||
| NIBB | 241862601 | Harness-wiring, Ptd W/led |
|
$ 122.09 |
