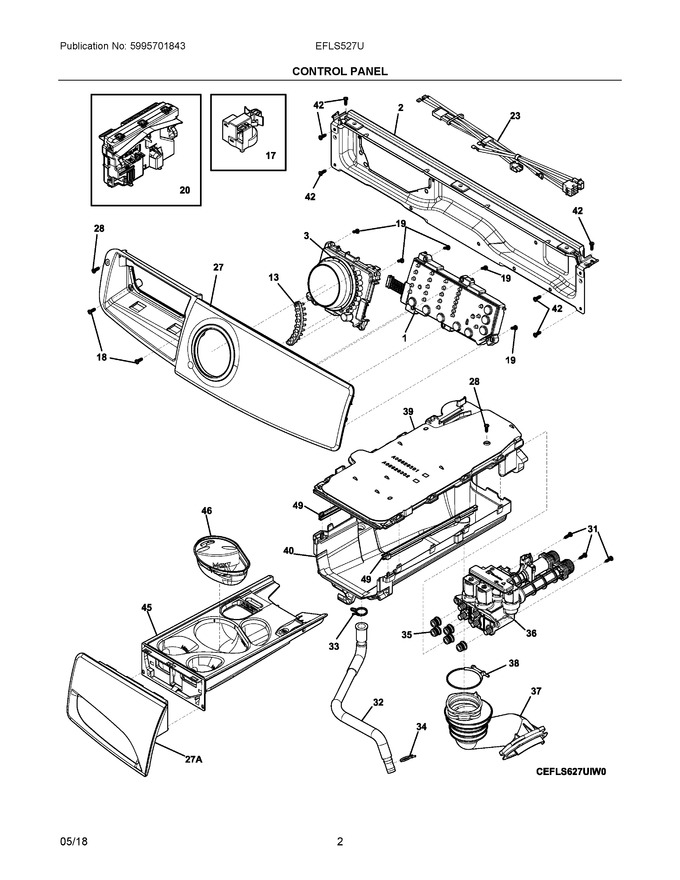

02 - Control Panel
03 - Cabinet/top
04 - Motor/tub
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304515232 | Board Assy, Ui Programmed, Satellite, W/housing-screw |
|
Immediately | $ 262.73 | ||||
| 2 | 5304505086 | Bracket, Control Panel |
|
$ 70.85 | |||||
| 3 | 5304522540 | Knob Assembly, Complete, W/boards (Replaces: 5304515282) |
|
$ 213.98 | |||||
| 13 | 5304505064 | Diffuser, Light |
|
$ 15.23 | |||||
| 17 | 5304505436 | Sensor Switch, Pressure |
|
Immediately | $ 51.64 | ||||
| 18 | 131302800 | Screw, Quadrex Ph, 10-16ab X 0.5 |
|
Immediately | $ 26.58 | ||||
| 19 | 5304505441 | Screw, Pph B, 6-20x.375 |
|
$ 6.51 | |||||
| 20 | 5304519502 | Main Board, Assembly (high), Washer, W/housing (Replaces: 5304515295) |
|
Immediately | $ 266.76 | ||||
| 23 | 5304522539 | Harness, Wiring, Main, W/drum Light (Replaces: 5304515281) |
|
Immediately | $ 177.70 | ||||
| 27 | 5304515296 | Console Assembly, W/overlay |
|
$ 192.97 | |||||
| 28 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 31 | 5304514820 | Screw, Quad, #8-18 X .625 |
|
$ 2.89 | |||||
| 32 | 134625500 | Hose, Disp-to-bellows |
|
$ 87.17 | |||||
| 33 | 134737300 | Clamp (Replaces: 131306216) |
|
$ 20.13 | |||||
| 34 | 5304528020 | Cable Tie, Push Mount, 5.20 Inch (Replaces: 131964400) |
|
$ 9.41 | |||||
| 35 | 134371300 | Gasket, Disp-to-valve |
|
Immediately | $ 51.04 | ||||
| 36 | 5304528029 | Valve Assembly, Vortex, W/flow Meter (Replaces: 5304514790) |
|
Immediately | $ 197.38 | ||||
| 37 | 134625700 | Hose, Disp-to-tub |
|
Immediately | $ 72.72 | ||||
| 38 | 134372400 | Clamp, Tub Hose |
|
$ 64.49 | |||||
| 39 | 5304537814 | Conveyor, Assembly, Dispenser (Replaces: 5304514794) |
|
Immediately | $ 54.77 | ||||
| 40 | 5304514782 | Housing, Dispenser, Lower |
|
Immediately | $ 64.34 | ||||
| 42 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 45 | 5304514792 | Drawer Assembly, Dispenser |
|
Immediately | $ 104.69 | ||||
| 46 | 5304514801 | Cup Assembly, Dispenser, Liquid, W/cover |
|
Immediately | $ 91.09 | ||||
| 49 | 5304514781 | Slider, Drawer, (2) |
|
Immediately | $ 84.59 | ||||
| 27A | 5304515297 | Handle Assembly, Drawer, W/overlay |
|
Immediately | $ 135.51 | ||||
| NI | 5304516032 | Label, Energy Guide |
|
- | |||||
| NIA | 134629400 | Screw, Mc5x8.5 Torx, Cabinet Mtg |
|
$ 12.76 | |||||
| NIA | 134407900 | Dampener, Vibration |
|
$ 17.01 |
