SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram

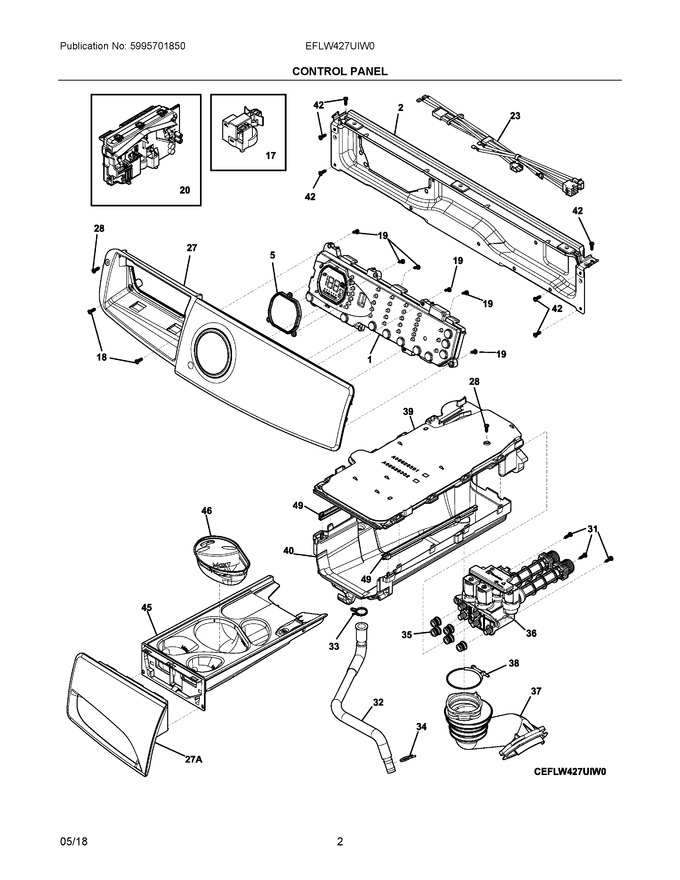

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304515294		Board Assembly, Ui Linear, W/housing-screw				$ 287.01
2	5304505086		Bracket, Control Panel				$ 70.85
5	5304505345		Seal, Display Area				$ 15.47
17	5304505436		Sensor Switch, Pressure			Immediately	$ 51.64
18	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 26.58
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
20	5304519501		Main Board, Assembly (low), Washer, W/housing   (Replaces: 5304515291)				$ 271.87
23	5304522538		Harness, Wiring, Main   (Replaces: 5304515280)				$ 148.20
27	5304515292		Console Assembly, W/overlay				$ 197.42
28	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
31	5304514820		Screw, Quad, #8-18 X .625				$ 2.89
32	134625500		Hose, Disp-to-bellows				$ 87.17
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
34	5304528020		Cable Tie, Push Mount, 5.20 Inch   (Replaces: 131964400)				$ 9.41
35	134371300		Gasket, Disp-to-valve			Immediately	$ 51.04
36	5304522535		Valve Assembly, Vortex, W/flow Meter   (Replaces: 5304514791)			Immediately	$ 114.03
37	134625700		Hose, Disp-to-tub			Immediately	$ 72.72
38	134372400		Clamp, Tub Hose				$ 64.49
39	5304537814		Conveyor, Assembly, Dispenser   (Replaces: 5304514794)			Immediately	$ 54.77
40	5304514782		Housing, Dispenser, Lower			Immediately	$ 64.34
42	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
45	5304514793		Drawer Assembly, Dispenser				$ 98.96
46	5304514801		Cup Assembly, Dispenser, Liquid, W/cover			Immediately	$ 91.09
49	5304514781		Slider, Drawer, (2)			Immediately	$ 84.59
27A	5304515293		Handle Assembly, Drawer, W/overlay				$ 96.88
NI	5304516033		Label, Energy Guide		Appelez-nous	-
NIA	134407900		Dampener, Vibration				$ 17.01
NIA	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg				$ 12.76

    View Diagram in Separate Window       Print Part List
