Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10815392 Rail, Straight Appelez-nous -
2 W10235990 Tray, Spill Special Order $ 73.51

3 N/P Box, Burner (not Serviced) Appelez-nous -
4 W10258697 Cover, Blower Motor Harness In-Stock Immediately $ 81.29

5 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.04

6 W10815650 Rail, Right Appelez-nous -
7 W10872311 Rail, Element Support Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

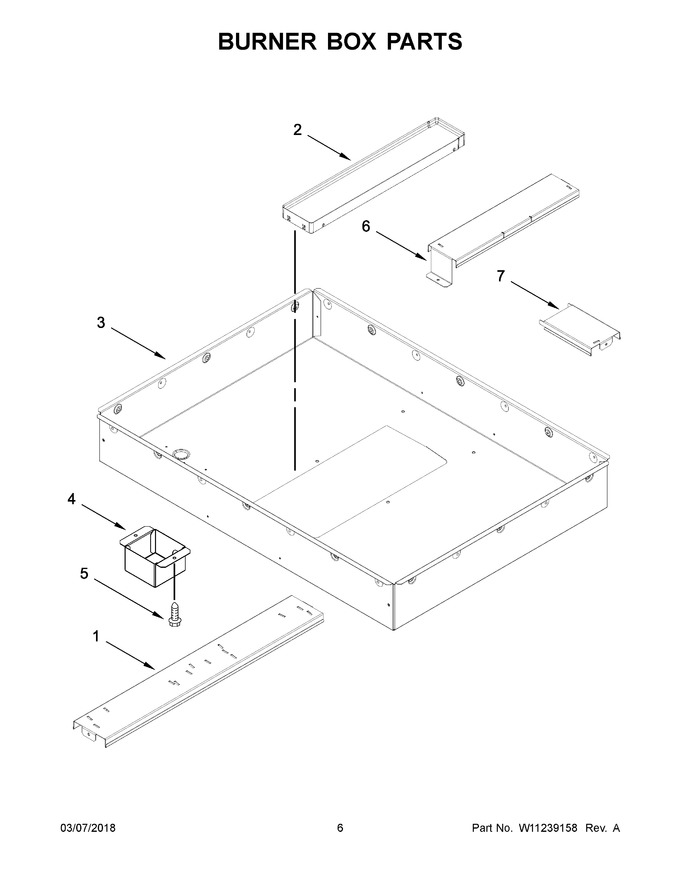

Diagram for KCED606GBL01
