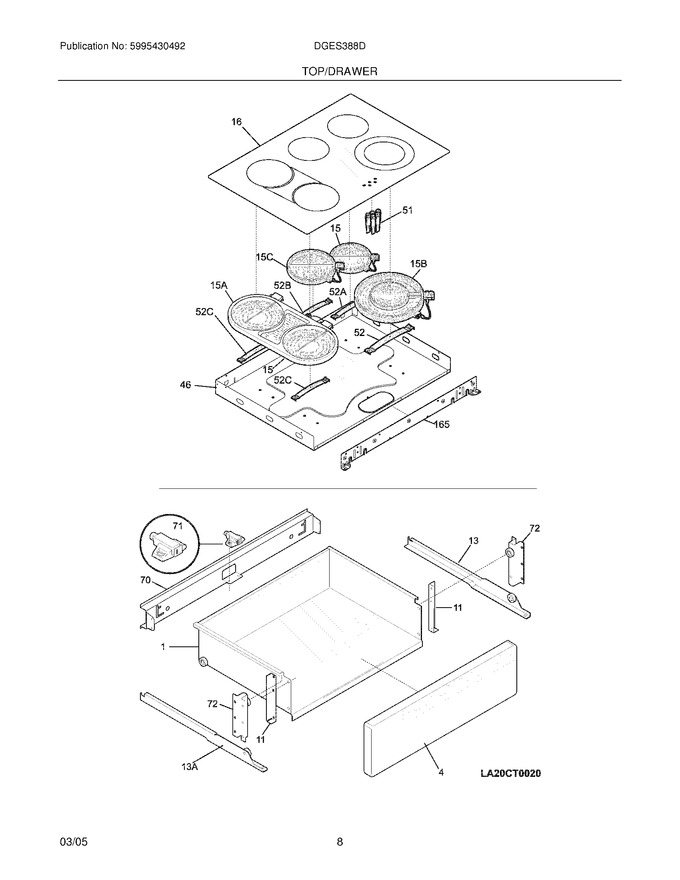

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107104)			Immediately	$ 143.39
4	318134012		Panel,drawer ,black ,front		Appelez-nous	-
11	318263100		Bracket,drawer ,(2)		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
16	318223626		Main Top,glass Assy. ,black				$ 489.75
46	318225401		Box,burner		Appelez-nous	-
52	318122008		Spring-element Mtg				$ 90.80
70	5303311143		Bracket,slide ,rear		Appelez-nous	-
71	318279800		Magnet & Spring Assy				$ 26.37
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
165	318227502		Plate,mounting		Appelez-nous	-
193	5303325173		Cap-plug		Appelez-nous	-
13A	5303311130		Channel,drawer ,lh		Appelez-nous	-
52A	318122010		Spring,element Mtg ,1000w/2500w				$ 62.51
52B	318122006		Spring,element Mtg ,small				$ 66.25
52C	318122004		Spring-element Mtg,700w & 2100w				$ 55.76
F15	318198817		Element,surface ,small/6`` ,1200 W			Immediately	$ 192.78
F15A	318258201		Element,bridge			Immediately	$ 480.54
F15B	318198925		Element,surface ,6/9 ,1200/2500w ,dual Radiant			Immediately	$ 283.81
F15C	318198816		Element,surface ,warmer ,100 W		Appelez-nous	-
F51	318044827		Light,indicator ,clear   (Replaces: 318044822)			Immediately	$ 60.25
NI	318248600		Bracket,drawer Channel		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
