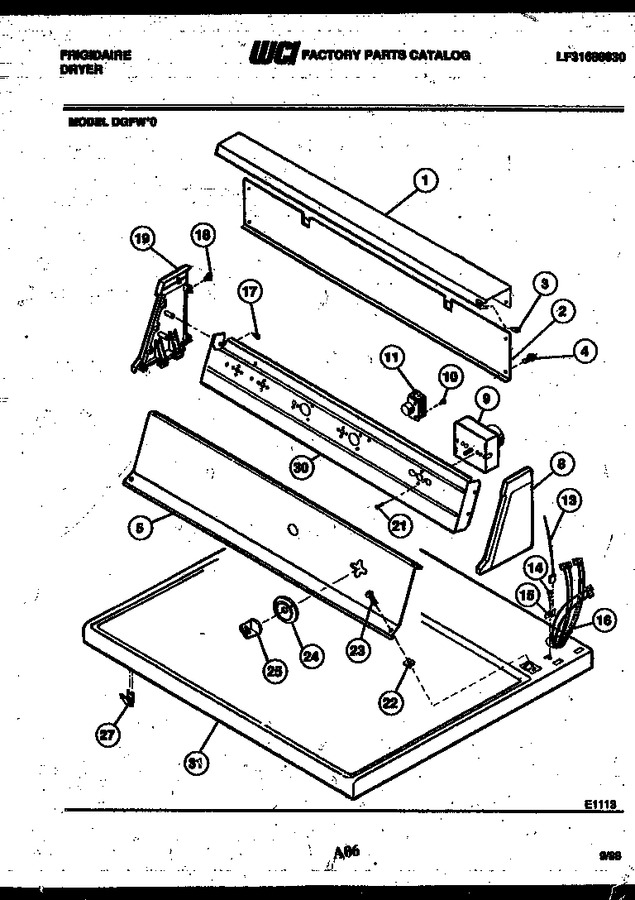

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201348		Cover-top		Appelez-nous	-
2	3201349		Cover-back		Appelez-nous	-
3	08010825		Clip (3)		Appelez-nous	-
4	3015671		Screw		Appelez-nous	-
5	3201350		Trim Plate		Appelez-nous	-
8	08010827		End Trim And Cap Assy Rh		Appelez-nous	-
9	3201351		Timer		Appelez-nous	-
10	08010804		Screw		Appelez-nous	-
11	1132293		Push To Start Switch		Appelez-nous	-
13	3201340		Ground Wire		Appelez-nous	-
14	08001689		Screw		Appelez-nous	-
15	08002341		Terminal		Appelez-nous	-
16	3201230		Harness		Appelez-nous	-
17	08006546		Screw		Appelez-nous	-
18	08010830		Clip		Appelez-nous	-
19	08010831		End Trim And Cap Assy Rh		Appelez-nous	-
21	08006636		Screw		Appelez-nous	-
22	08001912		Clip		Appelez-nous	-
23	08011318		Screw		Appelez-nous	-
24	08015702		Pointer		Appelez-nous	-
25	08015701		Knob Timer		Appelez-nous	-
27	3281170		Clip Spring		Appelez-nous	-
30	3201352		Bracket Control Mounting		Appelez-nous	-
31	3201345		Panel-top-white		Appelez-nous	-
16A	3281103		Wire Tire (non-illustrated)		Appelez-nous	-
