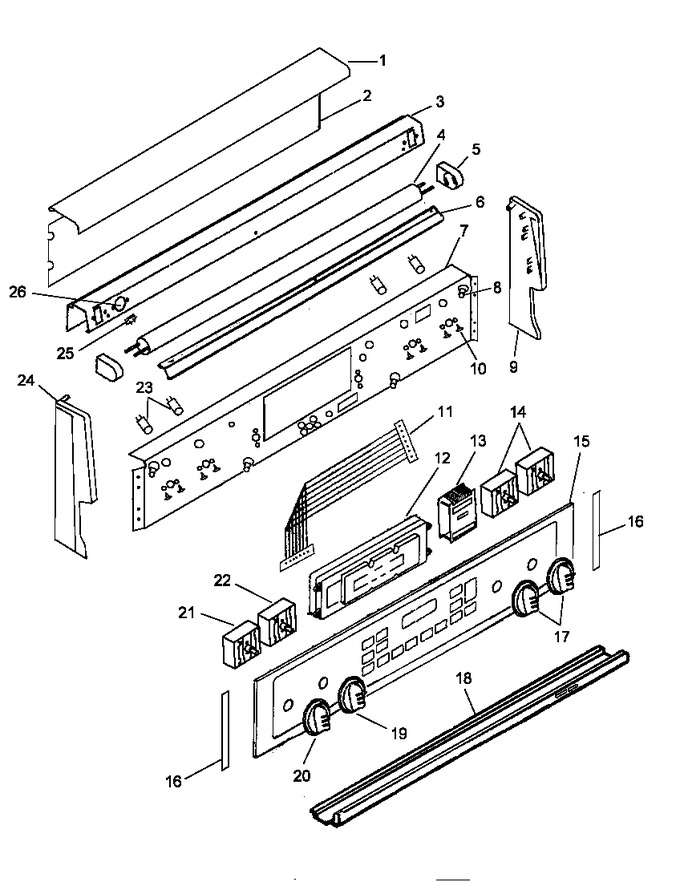

01 - Backguard Assy
02 - Cabinet Assy
03 - Electrical Components
04 - Main Top Assy
05 - Oven Assy
06 - Oven Door Assy
07 - Storage Drawer Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 304955L | Trim, Top Backguard (alm) |
|
- | |||||
| 2 | 0309137 | Cover, Backguard |
|
- | |||||
| 3 | 307211B | Bracket, Light |
|
- | |||||
| 4 | WPY0067945 | Lamp, Flourescent (Replaces: Y0067945) |
|
$ 29.33 | |||||
| 5 | Y0304559 | Lamp Holder-floures |
|
- | |||||
| 6 | 0304977 | Light Diffuser Backguard-clear |
|
- | |||||
| 6 | 314934L | Shield, Light (alm) |
|
- | |||||
| 7 | 0314556 | Panel, Bkgd Control |
|
- | |||||
| 8 | Y0314643 | Bumper, Rubber |
|
- | |||||
| 9 | 304928L | End Cap-bkgd Lt/rt (alm) |
|
- | |||||
| 10 | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768) |
|
Immediately | $ 6.47 | ||||
| 10 | WPW10068250 | Screw (Replaces: Y0071202) |
|
$ 3.66 | |||||
| 11 | 0314521 | Harness, Wiring |
|
- | |||||
| 12 | Y0309320 | Erc, 4800 Single Oven |
|
- | |||||
| 13 | Y0314034 | Board, Adapter |
|
- | |||||
| 14 | Y0309399 | Switch, Surface El. 10 Pos. |
|
- | |||||
| 15 | 309180L | Glass, Touch Control (alm) |
|
- | |||||
| 16 | 305309L | Channel, Glass (alm) |
|
- | |||||
| 17 | 309506L | Knob, Control-10 Position-alm |
|
- | |||||
| 18 | 314603L | Trim, Lower Bkgd (alm) |
|
- | |||||
| 19 | 306229L | Knob, Dual Inf Switch (alm) |
|
- | |||||
| 20 | 309870L | Knob, Infinite Switch (alm) |
|
- | |||||
| 21 | Y0307359 | Switch,inf(240tp-1244) |
|
- | |||||
| 22 | 0309549 | Switch, Dual Infinite (wht) |
|
- | |||||
| 23 | Y0071820 | Indicator Light |
|
- | |||||
| 24 | 304927L | End Cap-bkgd Lt/rt (alm) |
|
- | |||||
| 25 | 0071920 | Starter, Flourescent |
|
- | |||||
| 26 | Y0304560 | Start Holdr-flour.lmp |
|
- | |||||
| NI | 0306589 | Support, Bkgd (lh) |
|
- | |||||
| NI | 0306590 | Support, Bkgd (rh) |
|
- | |||||
| NI | WPW10068250 | Screw (Replaces: Y0071202) |
|
$ 3.66 | |||||
| NI | Y0073657 | Screw, No.6-20 X .375 Pan Hd Ph |
|
- | |||||
| NI | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: Y0041809) |
|
Immediately | $ 12.65 | ||||
| NI | Y0305391 | Collar, Starter Socket |
|
- |
