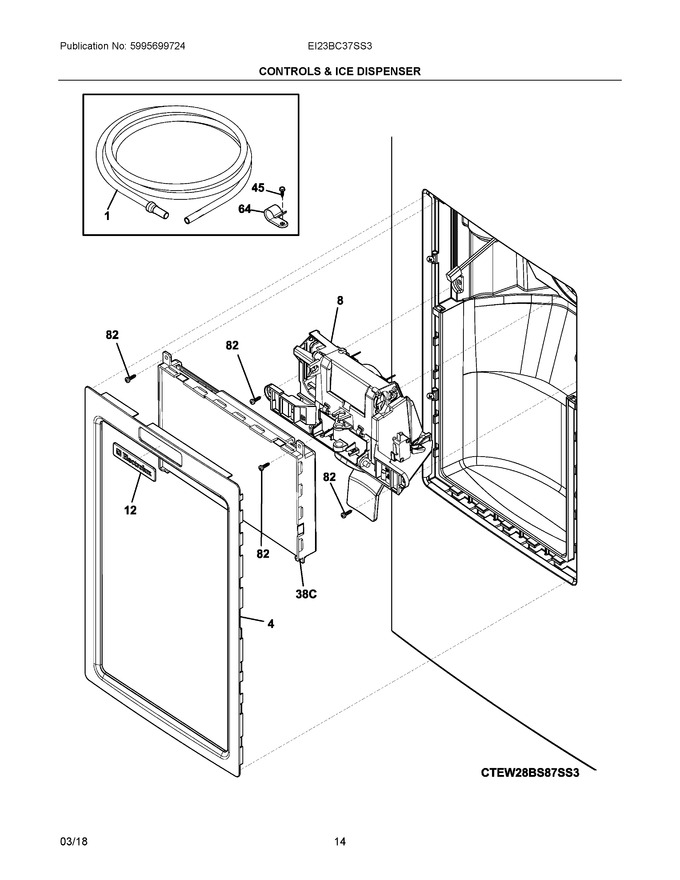

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241965906 | Tube-water, 5/16-67", Natural, Dispenser To, Back Connector |
|
Immediately | $ 24.10 | ||||
| 4 | 241893104 | Cover-module, Stainless (Replaces: 241757504) |
|
$ 71.48 | |||||
| 8 | 242270105 | Module, Dispenser, Clear, W/paddle |
|
$ 274.54 | |||||
| 12 | 241873301 | Nameplate, Electrolux, Stainless |
|
$ 11.15 | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 64 | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 38C | 5304508150 | Control Assembly, User Interface, W/housing |
|
$ 323.06 | |||||
| NI | 242040805 | Harness-wiring, Door, Hinge To Disp. |
|
- | |||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 60.96 | |||||
| NI | 5303918744 | Kit, Dspnsr Heater, Dc |
|
$ 203.24 | |||||
| NIA | 218976435 | Tube-water, 5/16-37", Yellow, Valve To, Back Connector |
|
$ 20.56 | |||||
| NIB | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIC | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 |
