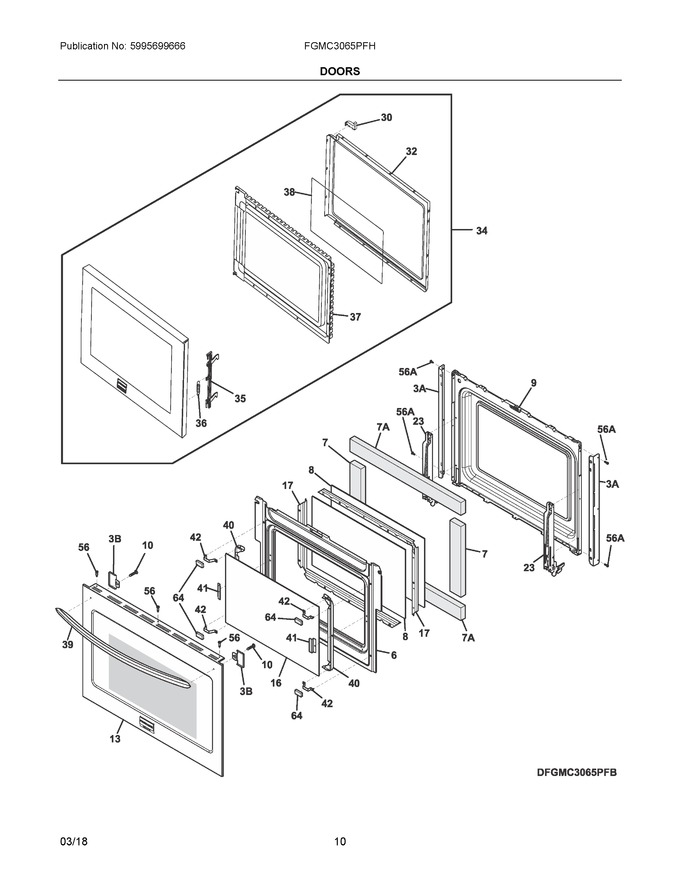

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139006905		Baffle, Door				$ 121.34
7	318372017		Insulation, Door				$ 16.30
8	5304503232		Glass, Oven Door, Inner   (Replaces: 316117503)				$ 116.95
9	139000411		Liner, Oven Door				$ 152.43
10	5304414648		Screw, Handle Mtg.				$ 14.18
13	5304515669		Door Assembly, Outer, Stainless/black, W/trim & Badge				$ 349.04
16	316446401		Glass, Oven Door, Airwash   (Replaces: 316446400)			Immediately	$ 125.13
17	318264731		Spacer, Glass, (2)				$ 72.05
23	316575915		Hinge, Oven Door, Lilac				$ 166.09
30	5304442145		Door Stop		Appelez-nous	-
32	5304440861		Choke Cover, Inner Door				$ 73.02
34	5304493449		Door Assembly, Complete, Stainless, W/badge				$ 278.54
35	5304441893		Latch, Door			Immediately	$ 48.91
36	5304440316		Spring, Door Latch			Immediately	$ 61.00
37	5304440857		Panel, Inner Door, Black				$ 192.29
38	5304440860		Seal, Door, Film				$ 63.09
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554008)			Immediately	$ 168.44
40	318242702		Bracket, Glass Holder, Door, (2)				$ 19.72
41	318370602		Bracket, Glass Panel, (2)				$ 13.65
42	318382302		Bracket, Glass Retainer, (4)				$ 50.81
56	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
64	318165800		Spacer, Glass, Foam				$ 17.72
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
3B	318262111		Cover, Rear Door, Black, (2)				$ 54.60
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
7A	318372016		Insulation, Door				$ 17.72
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
