SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)

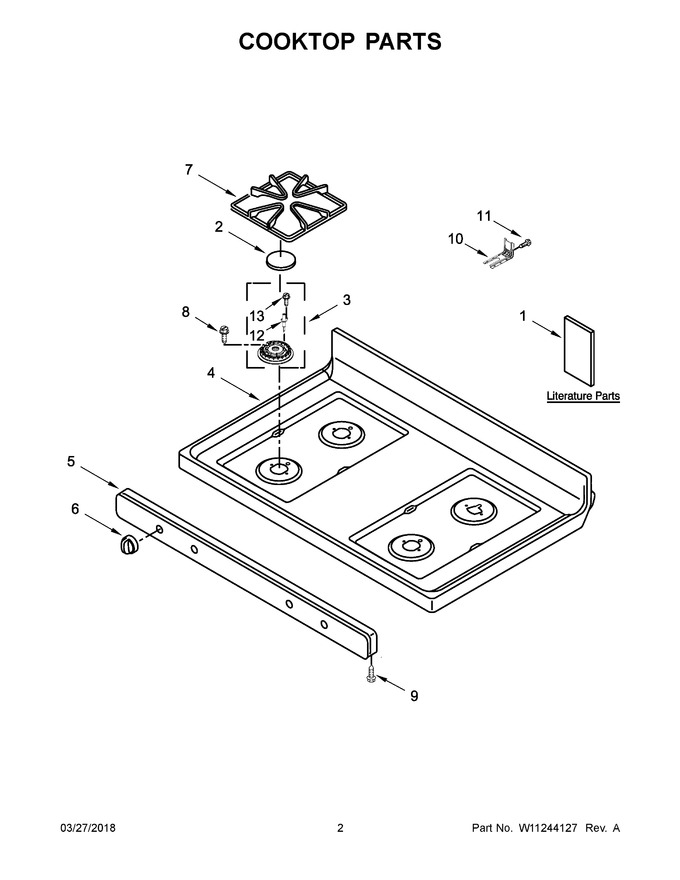

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11122558		Instructions, Installation		Appelez-nous	-
2	WPW10183375		Kit, Burner Cap (black)   (Replaces: W10183375)				$ 132.80
3	WPW10515455		Assembly, Burner (17.5k) (left Front & Right Front)   (Replaces: W10515455)				$ 101.22
4	W11133661		Cooktop (black)		Appelez-nous	-
5	W11244426		Panel, Manifold (black)   (Replaces: W11089575)		Appelez-nous	-
6	W11159631		Knob, Control (black)   (Replaces: W11023140)				$ 66.38
7	W10915784		Kit, Grate (black)   (Replaces: W10682667)				$ 311.27
8	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 6.42
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.16
10	W11447673		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.64
11	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 26.33
12	WPW10515459		Electrode   (Replaces: W10515459)			Immediately	$ 37.52
13	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.12
1A	W11102912		Guide, Use And Care		Appelez-nous	-
1B	W11102748		Sheet, Tech (english)		Appelez-nous	-
1C	W10873901		Diagram, Wiring		Appelez-nous	-
3A	WPW10515454		Assembly, Burner (9.5k) (left Rear)   (Replaces: W10515454)				$ 99.21
3B	WPW10515453		Assembly, Burner (6k) (right Rear)   (Replaces: W10515453)				$ 85.10
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10842520		Harness, Main		Appelez-nous	-
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 185.62
NI	W10809927		Harness, Cooktop				$ 137.92
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	3196896		Clip, Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
