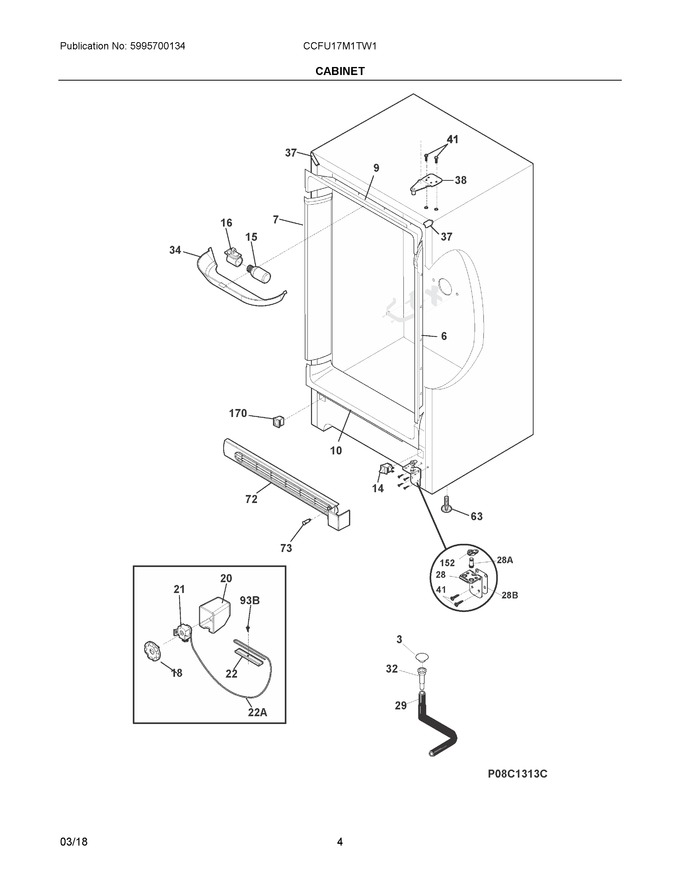

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216502600 | Plug, Drain, Interior |
|
Immediately | $ 17.35 | ||||
| 6 | 297435601 | Breaker |
|
$ 45.32 | |||||
| 7 | 297435600 | Breaker, W/lock |
|
$ 39.55 | |||||
| 9 | 297403901 | Breaker, Top |
|
$ 55.42 | |||||
| 10 | 297403902 | Breaker, Bottom |
|
$ 60.82 | |||||
| 14 | 216822900 | Switch, Light/lamp, Ramp |
|
Immediately | $ 70.16 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216846400) |
|
Immediately | $ 73.06 | ||||
| 16 | 297139501 | Socket, Light/lamp, 25 W |
|
$ 19.52 | |||||
| 18 | 216707200 | Knob, Temp Control |
|
$ 44.10 | |||||
| 20 | 297013800 | Cover-control Housing |
|
$ 80.43 | |||||
| 21 | 5304514707 | Control, Temperature (Replaces: 5304509466) |
|
Immediately | $ 70.49 | ||||
| 22 | 216823500 | Clamp, Cap Tube, Cold Control |
|
$ 15.27 | |||||
| 26 | 297415900 | Ramp, Door Closer |
|
Immediately | $ 24.74 | ||||
| 28 | 297416301 | Hinge, Reversible, Bottom Rh |
|
$ 15.18 | |||||
| 29 | 5304510363 | Hose-drain |
|
$ 13.74 | |||||
| 32 | 5304511843 | Drain (Replaces: 297382000) |
|
$ 13.74 | |||||
| 34 | 297184400 | Shield-light |
|
$ 21.16 | |||||
| 37 | 297273904 | Trim-cabinet Corner, White, (2) |
|
$ 7.59 | |||||
| 38 | 297283803 | Hinge-upper |
|
Immediately | $ 19.52 | ||||
| 41 | 240578902 | Screw, Hex Head, 1/4-20x5/8, Hinge (Replaces: 297236250) |
|
Immediately | $ 14.18 | ||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 72 | 297387921 | Grille/kickplate, W/sig Light |
|
$ 60.96 | |||||
| 73 | 5304495394 | Light Signal, Round, Green |
|
Immediately | $ 28.20 | ||||
| 93 | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.55 | ||||
| 152 | 5304511026 | Closer, Bearing Hinge (Replaces: 297416000) |
|
Immediately | $ 10.13 | ||||
| 170 | 297280400 | Valve, Breather |
|
$ 10.13 | |||||
| 28A | 297438300 | Pin, Bottom Hinge |
|
$ 7.23 | |||||
| 93A | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.03 | |||||
| 93B | 216036601 | Screw, Rwhd, 8-32a X 0.500, Gx-ca |
|
$ 13.65 | |||||
| NI | 5304510878 | Owners Guide |
|
- | |||||
| NI | 5304498525 | Service Data Sheet |
|
- | |||||
| NI | 125963-48 | Insulation, 24", Suction Line (Replaces: 297001704) |
|
Immediately | $ 59.16 | ||||
| NI | 5304510877 | Energy Guide |
|
- | |||||
| NI | 216337701 | Screw, Hwh, 10-24 X 0.500, Swage |
|
$ 14.41 | |||||
| NIA | 5304511026 | Hinge Bearing, Reversible |
|
Immediately | $ 10.13 | ||||
| NIA | 297164650 | Bracket, Lh Leg Levelor |
|
$ 18.43 | |||||
| NIB | 297164651 | Bracket, Rh Leg Levelor |
|
$ 17.51 |
