SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

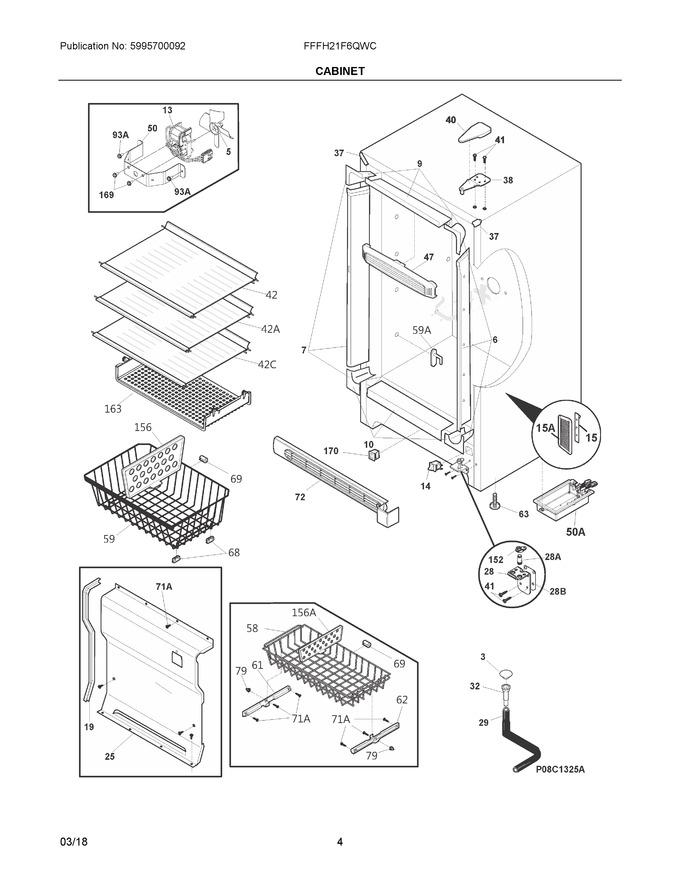

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	5304513294		Fan, Propeller				$ 14.96
6	297435605		Breaker				$ 51.57
7	297435604		Breaker, U21, W/lock				$ 58.50
9	297403901		Breaker, Top				$ 55.42
10	297403902		Breaker, Bottom				$ 60.82
13	297309000		Fan Motor Evap 115v			Immediately	$ 55.32
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 70.16
15	5304525264		Light Board, 3 Led Cluster, 6500k   (Replaces: 242196211)			Immediately	$ 53.64
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
25	297099251		Cover-evaporator				$ 109.93
26	297415900		Ramp, Door Closer			Immediately	$ 24.74
28	297416301		Hinge, Reversible, Bottom Rh				$ 15.18
29	5304510353		Hose, Drain, 17.8 Inch				$ 14.61
32	5304511843		Drain   (Replaces: 297382000)				$ 13.74
35	5304497977		Control Board, Assembly, W/harness   (Replaces: 5304496956)			Immediately	$ 287.42
37	297273904		Trim-cabinet Corner, White, (2)				$ 7.59
38	297283803		Hinge-upper			Immediately	$ 19.52
40	297164400		Cover-hinge, White				$ 12.65
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
42	5304497873		Shelf, Assy, Glass, Upper				$ 185.70
47	297192903		Baffle, Air			Immediately	$ 25.31
50	216394050		Bracket, Fan Motor Mount				$ 22.75
58	808618202		Basket, Lower				$ 134.42
59	808618302		Basket				$ 140.23
61	5304493996		Support, Hanging Basket, Rh		Appelez-nous	-
62	5304493997		Support, Hanging Basket, Lh		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297387706		Grille/kickplate				$ 64.50
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
93	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
152	5304511026		Closer, Bearing Hinge   (Replaces: 297416000)			Immediately	$ 10.13
156	5304494537		Divider, Basket		Appelez-nous	-
163	808617701		Shelf, Pizza, Hanging		Appelez-nous	-
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
170	297280400		Valve, Breather				$ 10.13
156A	5304494585		Divider, Basket, Lower				$ 24.10
15A	242202701		Lens, 3 Led Cluster				$ 30.47
28A	297438300		Pin, Bottom Hinge				$ 7.23
28B	5304497244		Shim, Bottom Hinge				$ 6.51
42A	A02289402		Shelf, Assy, Glass, Lower   (Replaces: 5304497876)				$ 44.82
42C	5304497953		Shelf, Assy				$ 176.48
50A	5304497977		Board-main Power, Board & Housing			Immediately	$ 287.42
58A	808408301		Clip, Basket Handle, Blue				$ 21.27
59A	216486500		Stop-basket, (2)				$ 20.58
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
NI	125963-48		Insulation, 24", Suction Line   (Replaces: 297001704)			Immediately	$ 59.16
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	5304496283		Grommet, Shelf Mtg				$ 9.22
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
NI	5304496697		Cover, Access, Machine Compt.		Appelez-nous	-
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NIA	5304511026		Hinge Bearing, Reversible			Immediately	$ 10.13
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51

    View Diagram in Separate Window       Print Part List
