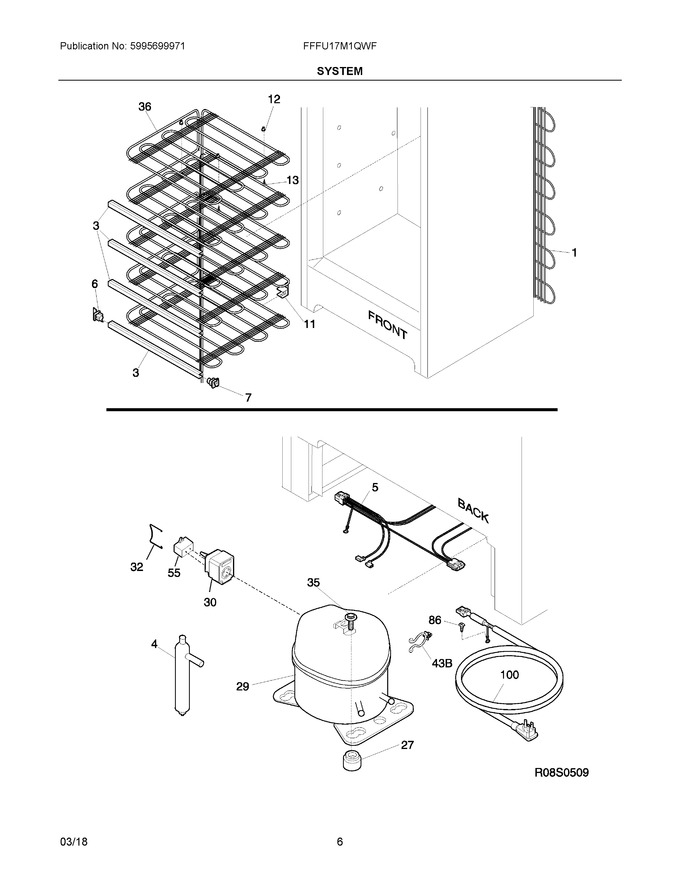

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 3 | 5304509723 | Trim, Shelf, Evap |
|
$ 31.81 | |||||
| 4 | 5303305677 | Filter-dryer (Replaces: 297396820) |
|
Immediately | $ 31.67 | ||||
| 5 | 297171900 | Harness-main, W/light |
|
$ 66.34 | |||||
| 6 | 297001600 | Support-shelf, Front Lh |
|
$ 18.08 | |||||
| 7 | 297001500 | Support-shelf, Front Rh |
|
$ 18.08 | |||||
| 11 | 216474600 | Support-rear Shelf |
|
$ 16.55 | |||||
| 12 | 216225700 | Grommet-spacer |
|
$ 7.77 | |||||
| 13 | 216138901 | Screw, Hex Sems, 8-18ab X 1.00, Evap |
|
- | |||||
| 27 | 297368501 | Bolt, Compressor |
|
$ 4.96 | |||||
| 29 | 5304507766 | Compressor, Dgk57c88rpu (Replaces: 297414055) |
|
$ 810.08 | |||||
| 30 | 297259515 | Controller, Compressor |
|
$ 74.42 | |||||
| 32 | 216954300 | Clip, Controller |
|
$ 17.01 | |||||
| 34 | 5304511843 | Sleeve |
|
$ 13.74 | |||||
| 35 | 216273000 | Clip, Wire Retainer |
|
$ 22.42 | |||||
| 36 | 297234500 | Evaporator, Tubing Assy |
|
$ 357.92 | |||||
| 55 | 297286812 | Capacitor-run, 250 Va, 12 Mf (Replaces: 297286802) |
|
Immediately | $ 11.78 | ||||
| 86 | 216036601 | Screw, Rwhd, 8-32a X 0.500, Gx-ca |
|
$ 13.65 | |||||
| 100 | 297366805 | Cord, Power (Replaces: 297366804) |
|
$ 68.68 | |||||
| 43B | 297315800 | Clip, Wire |
|
$ 10.13 | |||||
| NI | 125963-48 | Insulation, 24", Suction Line (Replaces: 297001704) |
|
Immediately | $ 59.16 | ||||
| NI | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.03 | |||||
| NI | 5304485759 | Tape, Foil (Replaces: 216737600) |
|
$ 0.71 | |||||
| NI | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 |
