01 - Cover Sheet


02 - Door


03 - Cabinet

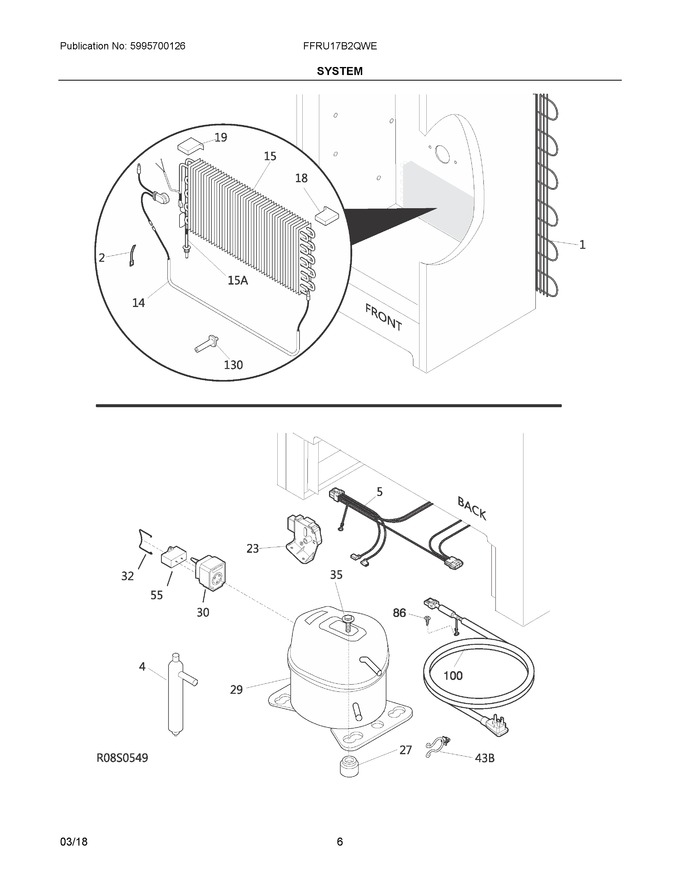

04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
4	5303305677		Filter-dryer   (Replaces: 297396860)			Immediately	$ 31.67
5	297244600		Harness-main				$ 130.44
14	5304496637		Heater-defrost				$ 62.17
15	297414901		Evaporator   (Replaces: 297414900)			Immediately	$ 171.34
18	297078701		Insulator-evap, Styrofoam, Rh				$ 3.62
19	297078801		Insulator-evap, Styrofoam, Lh				$ 3.62
23	5304518034		Timer, Defrost, 115v, Tab   (Replaces: 297318010)			Immediately	$ 57.55
27	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
29	5304515616		Compressor, Glm125d		Appelez-nous	-
30	297259531		Controller, Compressor				$ 55.76
31	297165802		Pan-drain				$ 55.86
32	216954300		Clip, Controller				$ 17.01
34	5304511843		Sleeve				$ 13.74
35	216273000		Clip, Wire Retainer				$ 22.42
55	297286812		Capacitor, Run, 10mf   (Replaces: 216985000)			Immediately	$ 11.78
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
93	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
100	297366805		Cord, Power   (Replaces: 297366804)				$ 68.68
130	297244700		Support, Evaporator Mtg				$ 4.26
15A	297217900		Assy Heat Exchanger U17f-u21f   (Replaces: 5304506363)			Immediately	$ 91.82
27A	297368501		Bolt, Compressor				$ 4.96
43B	297315800		Clip, Wire				$ 10.13
NI	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46
NI	297102800		Spacer-tube		Appelez-nous	-
NI	125963-48		Insulation, 24", Suction Line   (Replaces: 297001704)			Immediately	$ 59.16
NI	5304485759		Tape, Foil   (Replaces: 216737600)				$ 0.71
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
