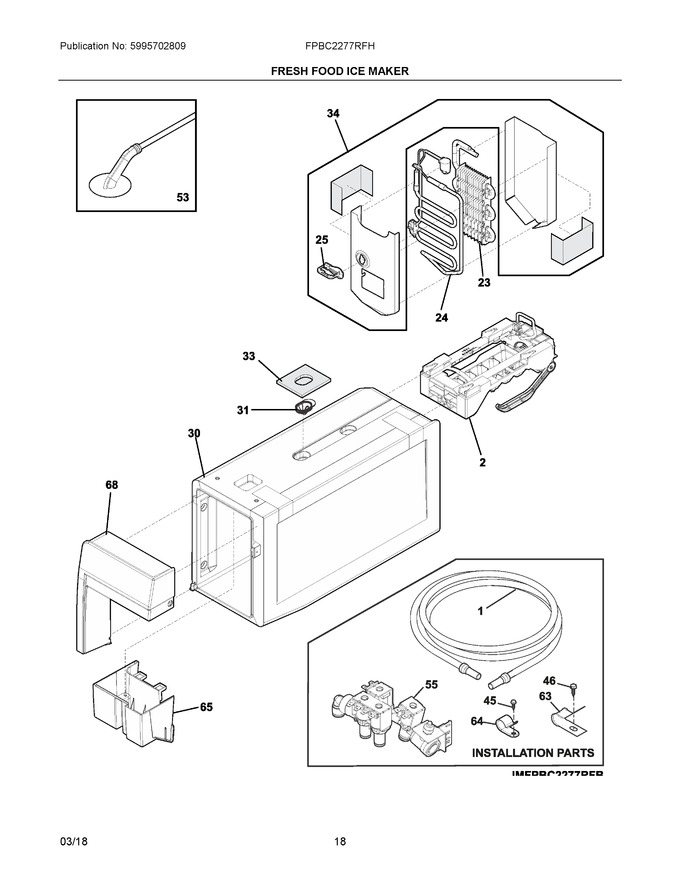

FPBC2277RFH | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	218976435	Tube-water, 5/16-37", Yellow, Valve To, Back Connector			$ 20.56
2	243297613	Ice Maker, Complete, 115 V (Replaces: 243297606)		Immediately	$ 117.66
23	242094604	Evaporator	Appelez-nous	-
24	140068083116	Heater-defrost, W/safety Therm (Replaces: 242094804)		Immediately	$ 95.78
25	5304508037	Connector, Harness, Evap Cover			$ 14.41
30	242095403	Gasket-evap Housing, .250x.250x7.750	Appelez-nous	-
31	5303918571	Tube-water, Ice Mold Fill, Black, Extension (Replaces: 241844403)			$ 164.24
33	5303918784	Gasket, Housing Funnel, 2.69x 3.05x .25, Top, W/hole (Replaces: 242146001)		Immediately	$ 122.75
34	5303918779	Housing Kit, Ffim Evaporator, W/harness Clip		Immediately	$ 27.86
45	5304455650	Screw, Hex Washer Head, 8-15a X 0.625, Low Profile			$ 14.18
46	5304453923	Screw, Hex Hd Wshr, #8-32 X 1/2	Appelez-nous	-
50	241512813	Seal, Doughnut		Immediately	$ 6.82
51	242169404	Tube-water, Ice Mold Fill, 1/4 - 44", Blue, W/extension	Appelez-nous	-
52	5304508046	Insulation, I/m Fill Tube		Immediately	$ 14.41
55	242253002	Valve-water, Quad Solenoid		Immediately	$ 244.75
63	5304453921	Clamp-cable	Appelez-nous	-
64	240396801	Clamp, Tube/wiring, Nylon, Black/natural			$ 19.13
65	808462601	Cover, Wiring		Immediately	$ 36.86
68	242095002	Cover, -front, Bucket Trim			$ 94.82
NIA	218709101	Screw, Hex Head, 10-32 X 0.500			$ 6.38
NIA	215688131	Tape, Aluminum, 2" Wd X 3.50" L	Appelez-nous	-
NIA	242220204	Tube-water, 93.5", Natural, Filter Base To, Secondary Valve		Immediately	$ 40.32
NIB	5303918784	Gasket-evap Housing (Replaces: 242095401)		Immediately	$ 122.75
NIB	240363602	Screw-shoulder			$ 13.65
NIC	242095402	Gasket-evap Housing, .250x.250x3.300	Appelez-nous	-
