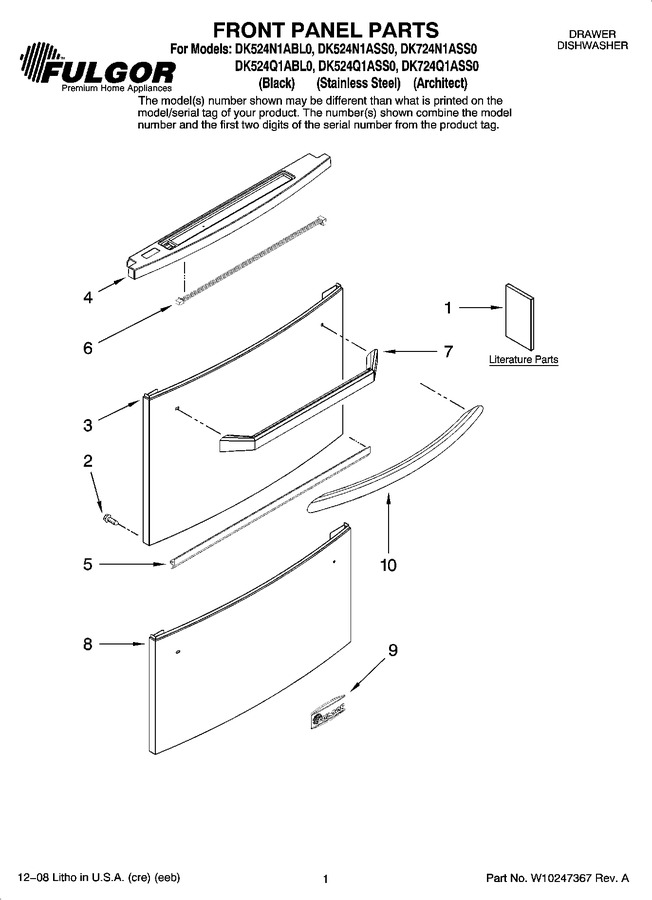

01 - Front Panel Parts
02 - Tub Parts
03 - Wash System Parts
04 - Upper And Lower Dishrack Parts
05 - Frame And Lid Parts
06 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10185071 | Instructions, Installation |
|
- | |||||
| 1 | W10208038 | Energy Guide |
|
- | |||||
| 2 | Y912620 | Screw |
|
$ 5.48 | |||||
| 3 | W10210675 | Panel, Front (upper) (s.steel) |
|
- | |||||
| 3 | W10210674 | Panel, Front (upper) (black) |
|
- | |||||
| 4 | W10128552 | Control Panel (inc. Interface & Nameplate) (s.steel) |
|
- | |||||
| 4 | W10128553 | Control Panel (inc. Interface & Nameplate) (black) |
|
$ 174.99 | |||||
| 5 | 99003716 | Trim, Toe Kick |
|
- | |||||
| 6 | W10117969 | Harness, User Interface |
|
$ 206.56 | |||||
| 7 | W10218690 | Handle, Door (black) |
|
- | |||||
| 7 | W10167846 | Handle, Door (s.steel) |
|
- | |||||
| 8 | W10210677 | Panel, Front (lower) (black) |
|
- | |||||
| 8 | W10210678 | Panel, Front (lower) (s.steel) |
|
- | |||||
| 9 | W10167773 | Nameplate |
|
- | |||||
| 10 | W10167834 | Handle, Door (architect Grip (used On Dk724)) |
|
- |
