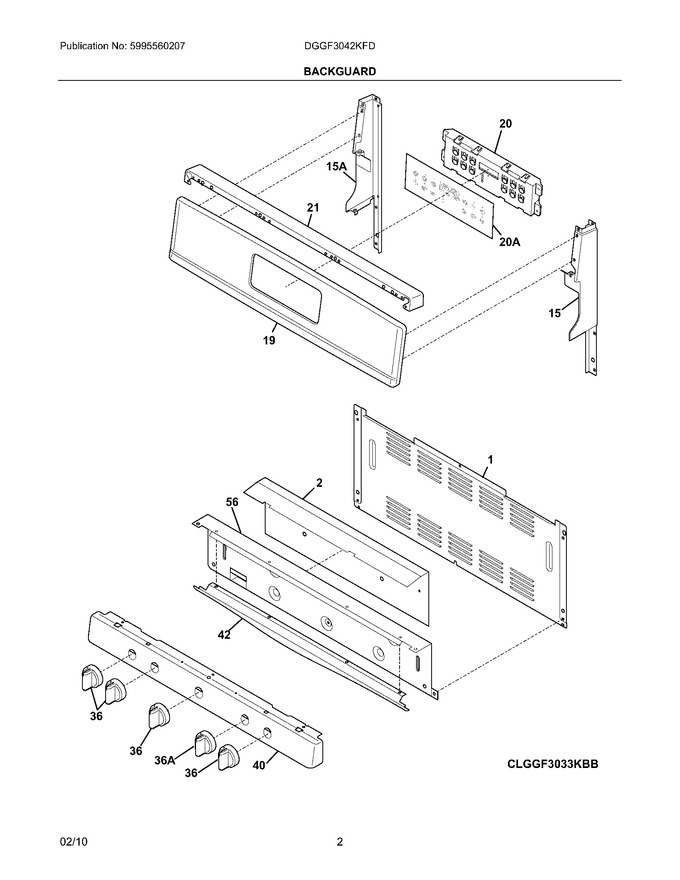

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield,rear Wall				$ 70.04
2	316497601		Shield,backguard ,inner				$ 49.40
15	316546702		Cap,backguard ,black ,rh End				$ 52.55
19	316572406		Panel,backguard ,br Alum				$ 276.35
21	316546605		Cap,backguard ,black ,top   (Replaces: 316546601)				$ 66.91
36	316564511		Knob,top Valve ,black ,(4)				$ 35.07
40	316249044		Panel,manifold ,stainless Steel				$ 120.28
42	316416204		Trim,extrusion ,black   (Replaces: 316416200)				$ 43.99
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316546703		Cap,backguard ,black ,lh End				$ 64.47
20A	316419353		Overlay,clock ,black ,es330isb   (Replaces: 316419342)			Immediately	$ 39.43
36A	316564508		Knob,top Valve ,black ,(1)				$ 48.91
F20	5304509231		Controller,electronic ,es330isb   (Replaces: 316557217)				$ 165.83
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
