SELECT A DIAGRAM

01 - Console


02 - Cabinet


03 - Door


04 - Tub , Literature And Optional


05 - Pump And Motor


06 - Dishrack


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP304231		Screw, 8-18 X 1/2 (3)   (Replaces: 304231)			Immediately	$ 6.98
2	3370001		Timer				$ 2,179.14
3	304232		Screw, 7-18 X 1-3/8		Appelez-nous	-
4	304409		Relay, Start		Appelez-nous	-

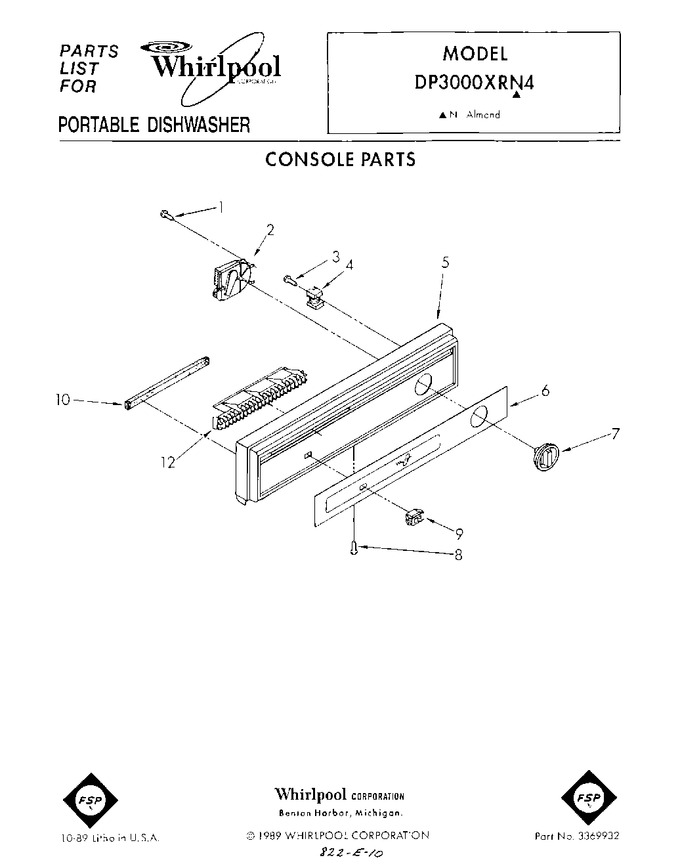

5	304606		Console (includes Items 6 & 12)		Appelez-nous	-
6	3367622		Insert, Decorative		Appelez-nous	-
7	3367282		Knob, Timer		Appelez-nous	-
8	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 304234)			Immediately	$ 7.01
9	WP4314961		Rocker Switch   (Replaces: 661520)				$ 80.53
10	3368537		Foam, Seal		Appelez-nous	-
12	304602		Grill, Vent		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
