View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Console
02 - Cabinet
03 - Door
04 - Tub , Literature And Optional
05 - Pump And Motor
06 - Dishrack
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:

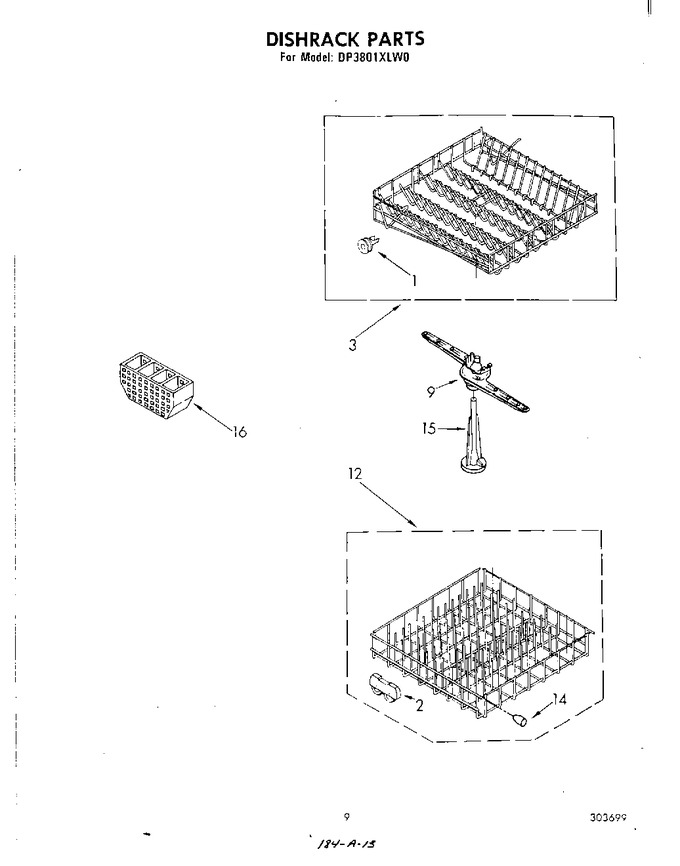

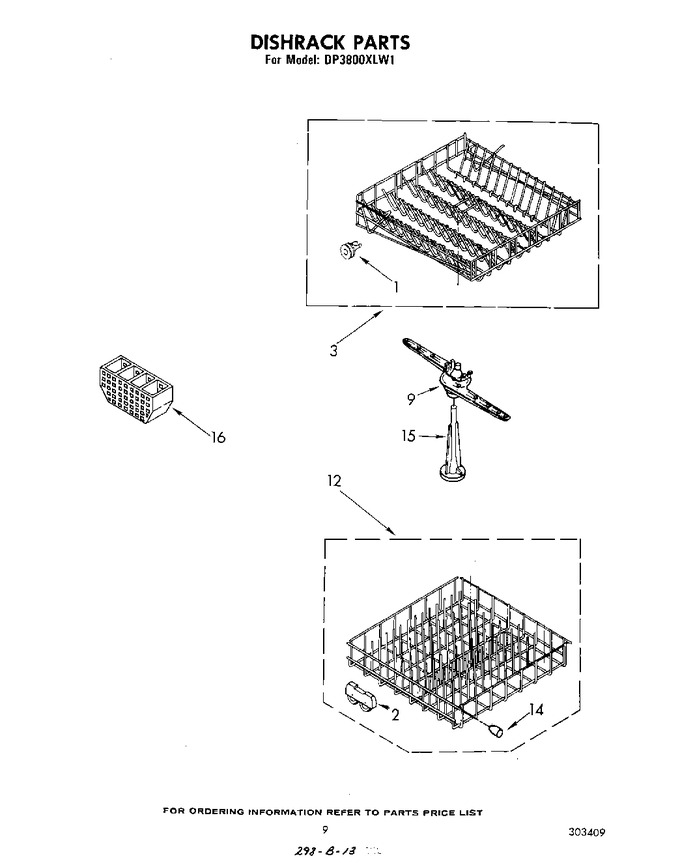

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 300995 | Wheel & Axle Assembly (4) |
|
- | |||||
| 2 | 4317933 | Wheel & Shroud Assembly (4) (Replaces: 717509) |
|
$ 43.80 | |||||
| 3 | W11169039 | Dishrack, Upper (Replaces: 302986) |
|
Immediately | $ 182.83 | ||||
| 9 | 302813 | Spray Arm Assembly |
|
- | |||||
| 12 | W10311986 | Dishrack, Lower (Replaces: 303357) |
|
Immediately | $ 169.33 | ||||
| 14 | W10410999 | Bumper (Replaces: 303358) |
|
Immediately | $ 166.30 | ||||
| 15 | 302030 | Tower |
|
- | |||||
| 16 | WP8539066 | Basket, Silverware (Replaces: 302046) |
|
$ 91.31 |
