New Model Search:

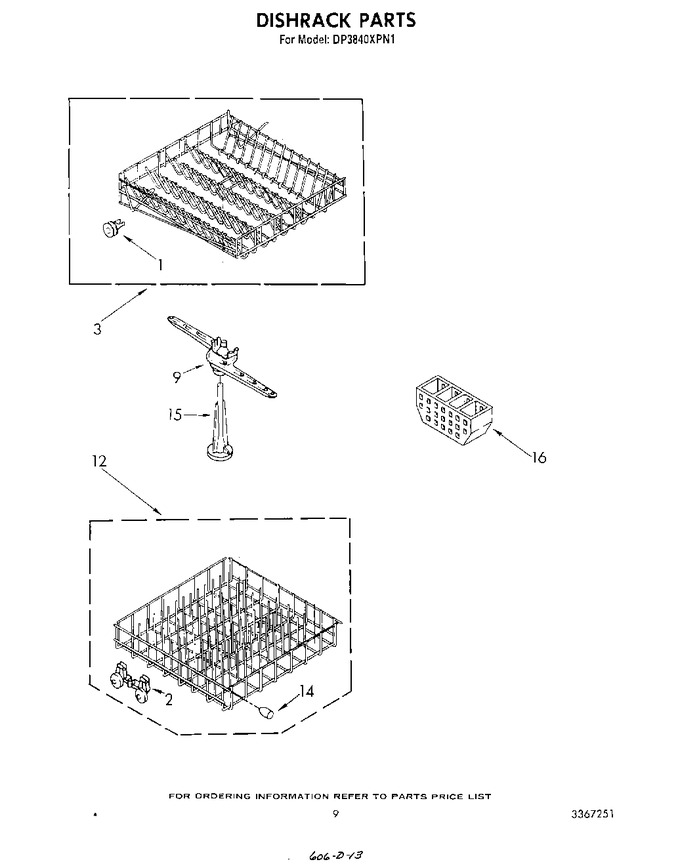

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 300995 | Wheel & Axle Assembly (4) |
|
- | |||||
| 2 | 4317933 | Wheel & Carrier Assembly (4) (Replaces: 303991) |
|
$ 43.80 | |||||
| 3 | W11169039 | Dishrack, Upper (Replaces: 304187) |
|
Immediately | $ 182.83 | ||||
| 9 | 304204 | Spray Arm, Upper |
|
$ 67.61 | |||||
| 12 | W10311986 | Dishrack, Lower (Replaces: 304176) |
|
Immediately | $ 169.33 | ||||
| 14 | 304490 | Bumper |
|
- | |||||
| 15 | 304170 | Tower |
|
$ 72.38 | |||||
| 16 | WP8539066 | Silverware Basket (Replaces: 3367117) |
|
$ 91.31 |
