SELECT A DIAGRAM
01 - Cabinet
02 - Cavity
03 - Main Top And Backguard

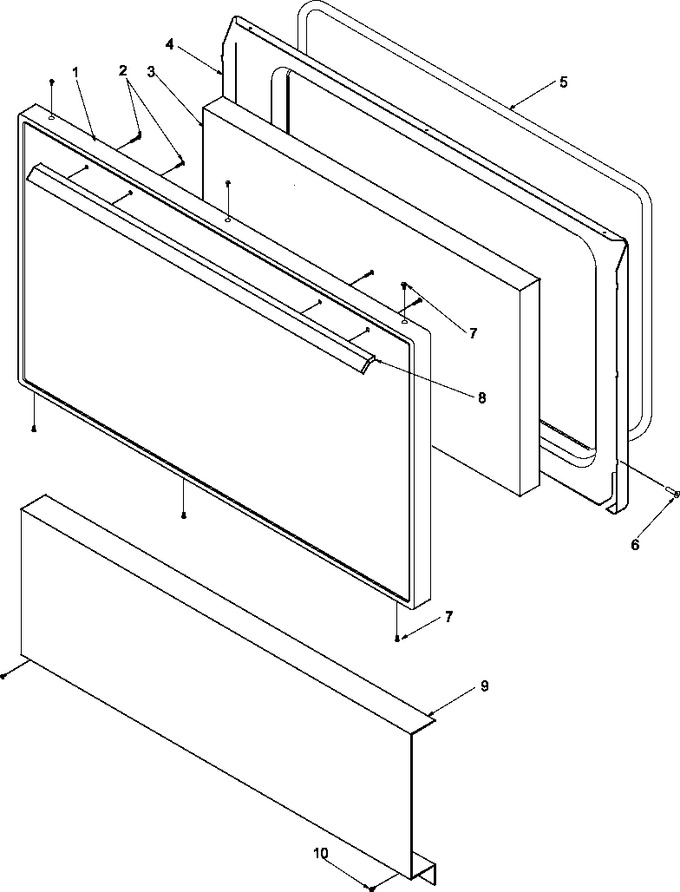

04 - Oven Door And Decorative Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31802802L | Pnl, Pntd Door (almond) |
|
- | |||||
| 2 | 31750509 | Screw, No.10-24x1/2 (ph Trus Hd) |
|
- | |||||
| 3 | 31819601 | Insul, Nsc Door (20x26x2 Ht) |
|
- | |||||
| 4 | 31819802CG | Backer, Door (enamel) |
|
- | |||||
| 5 | 31819101 | Gasket, Oven Door |
|
- | |||||
| 6 | Y0302648 | Rivet, Pop |
|
- | |||||
| 7 | 31750706 | Screw, No.8 X .375 Wafer Hd(blk) |
|
- | |||||
| 8 | 31819006L | Handle, Visor |
|
- | |||||
| 9 | 31819703L | Panel, False (elec Almond) |
|
- | |||||
| 10 | 31750517 | Screw, No.10-32x1/2 (pan Ph Hd) |
|
- | |||||
| NI | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: 31750701) |
|
Immediately | $ 12.65 |
