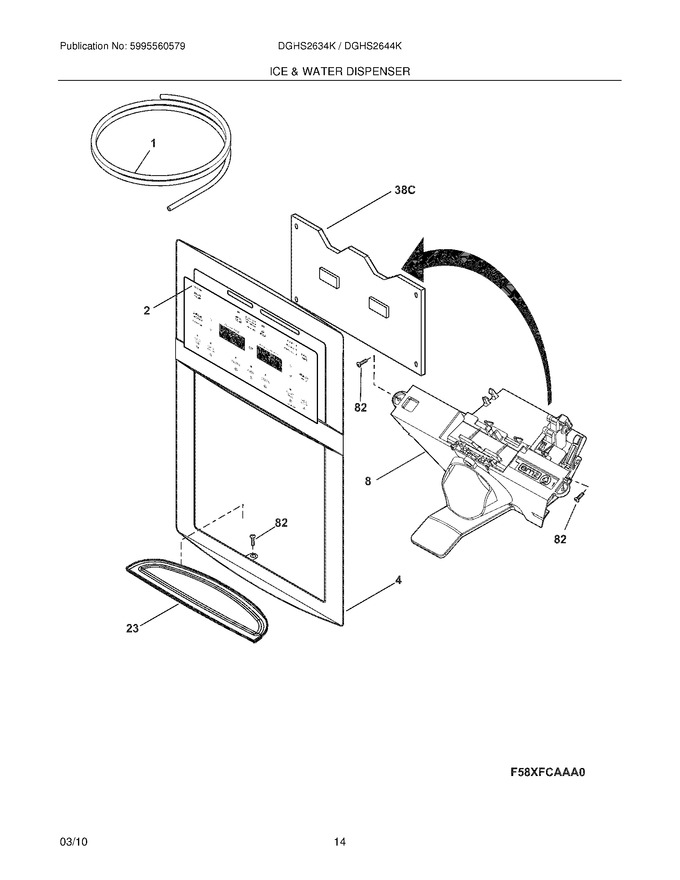

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976419		Tube-water Inlet,valve To Door				$ 22.68
1	218976409		Tube-water-door			Immediately	$ 60.25
2	241973817		Switch Assembly,overlay ,black		Appelez-nous	-
4	241946809		Cover-module				$ 151.02
8	242074223		Module-dispenser   (Replaces: 242074205)				$ 255.15
23	241947003		Drip Tray   (Replaces: 241947006)				$ 23.39
82	5304453707		Screw,plask ,no.8-18 X .500   (Replaces: 240363402)			Immediately	$ 15.92
F38C	241973711		Board-control   (Replaces: 241973702)			Immediately	$ 347.34
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 317.38
NI	241850615		Tube-water Inlet,inlet Valve ,to Filter   (Replaces: 218976915)				$ 34.73
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 20.56
NI	218976429		Tube-water Inlet,97.50`` ,brown/tan				$ 40.40
