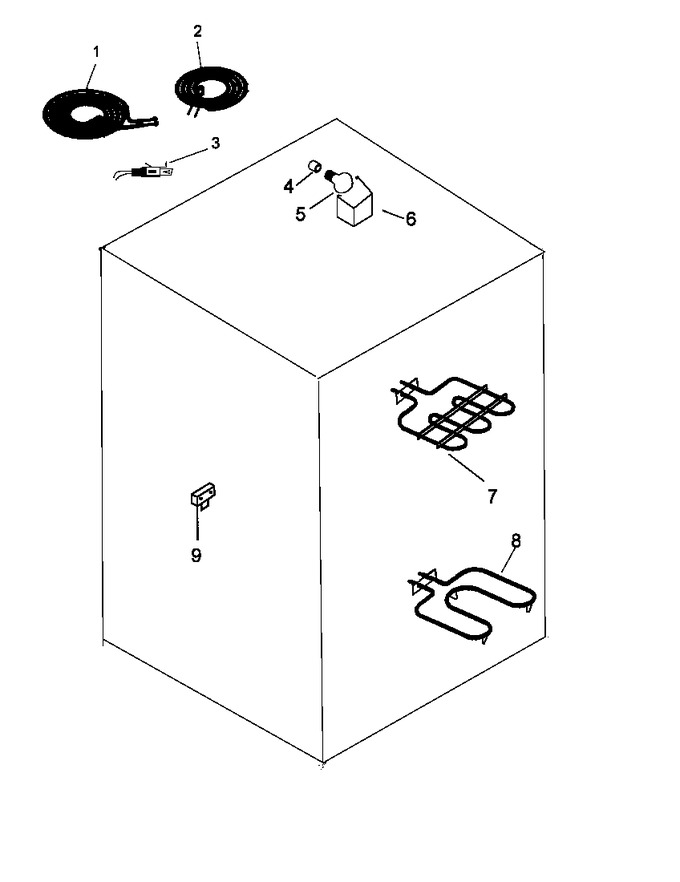

01 - Backguard Assy


02 - Cavity Assy


03 - Electrical Components


04 - Main Top Assy


05 - Oven Assy


06 - Oven Door Assy


07 - Storage Drawer Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3191454		Element, 5 Turn (2100w) 8``   (Replaces: Y0051571)				$ 163.63
2	Y0051573		Surface Elem. 6`` 240 V. 1250 W		Appelez-nous	-
4	Y03097001		Socket, Oven Light		Appelez-nous	-
5	Y0042175		Bulb, Light		Appelez-nous	-
6	Y0315057		Cage, Oven Light		Appelez-nous	-
7	Y0063532		Broil Element,3000 Watt				$ 66.11
8	WP77001094		Element, Bake (240v-2500w)   (Replaces: Y0059552)			Immediately	$ 39.58
9	WP8203546		Terminal Block   (Replaces: Y0306378)			Immediately	$ 27.12
NI	Y0072270		Screw, Grounding		Appelez-nous	-
NI	0306381		Hex Nut No.10-32 Nickel		Appelez-nous	-
NI	WPW10245259		Strap, Ground   (Replaces: Y0306379)			Immediately	$ 31.65
