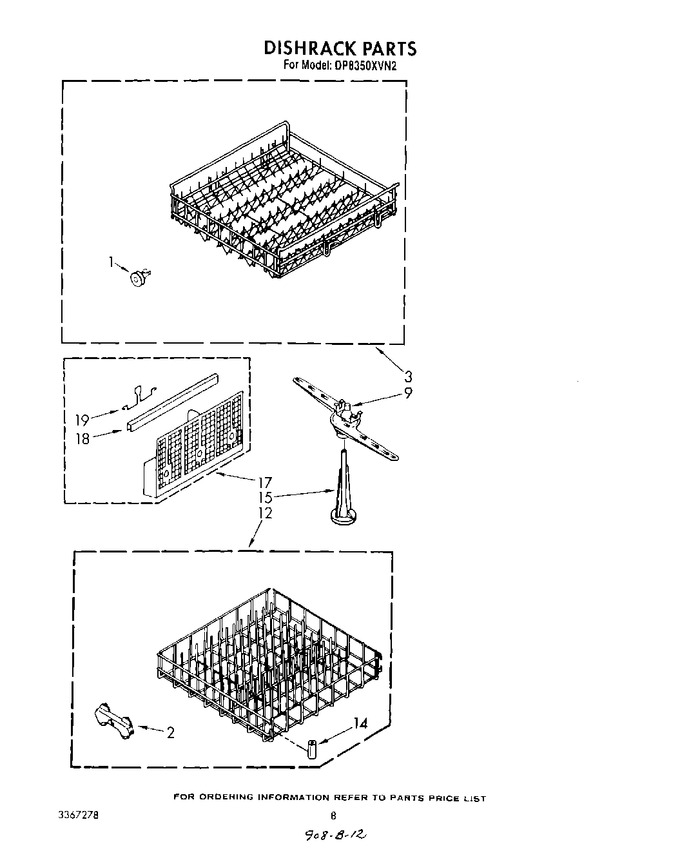

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300995		Wheel & Axle Assembly (4)		Appelez-nous	-
2	WP3376961		Wheel & Transport Assembly (4)   (Replaces: 3369509)				$ 84.59
3	W11169039		Dishrack, Upper   (Replaces: 661521)			Immediately	$ 182.83
9	304204		Spray Arm, Upper				$ 67.61
12	W10311986		Dishrack, Lower   (Replaces: 3368598)			Immediately	$ 169.33
14	304490		Bumper (2)		Appelez-nous	-
15	304170		Tower				$ 72.38
17	304166		Silverware Basket Assembly		Appelez-nous	-
18	717528		Trim Basket (2)		Appelez-nous	-
19	300086		Handle, Basket		Appelez-nous	-
