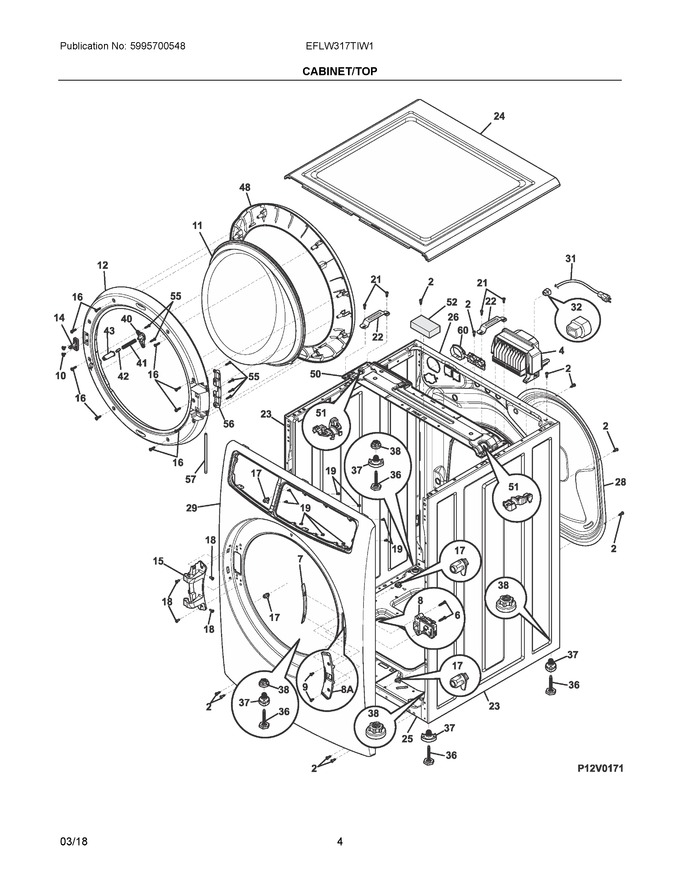

03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	5304516720		Motor Control, Assembly, W/cover				$ 281.14
6	5308014215		Screw, Sheet Metal, 6-20 X 0.375, (2)   (Replaces: 134477400)				$ 2.28
7	5304505144		Cover, Hinge Holes				$ 4.19
8	5304514774		Door Lock, Assembly, W/switch   (Replaces: 5304505231)			Immediately	$ 114.34
9	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
10	137241000		Screw, Quad Ph, 10-16 X 0.375				$ 10.63
11	5304505107		Glass, Door Window				$ 225.55
12	5304505233		Frame, Door, Inner				$ 164.83
14	5304505088		Latch, Door			Immediately	$ 34.62
15	5304508699		Hinge Assembly, Door, W/bushings			Immediately	$ 124.25
16	137087000		Screw, Comb Pnhd B, #10-16x.75, (9)			Immediately	$ 11.34
17	5304505102		Clip, Front Panel, (4)				$ 13.74
18	5304505259		Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4)			Immediately	$ 16.43
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
21	137087400		Screw, #10-16 X .625		Appelez-nous	-
22	5304505101		Bracket, Spring, (2)				$ 13.01
23	5304505139		Panel, Side, White, (2)			Immediately	$ 242.13
24	5304505081		Top Panel, White				$ 227.48
25	134646003		Base				$ 199.59
26	134646113		Panel, Back   (Replaces: 134646111)				$ 192.78
28	134646205		Panel, Service, Back   (Replaces: 134646201)				$ 31.66
29	5304505058		Panel, Washer Front, White			Immediately	$ 253.17
31	5304522525		Power Cord, Electric Svce   (Replaces: 5304505202)			Immediately	$ 62.13
32	5303209428		Bushing, Strain Relief				$ 17.01
36	134639100		Leveling Leg, Screw			Immediately	$ 31.19
37	134617600		Bushing, Leveling Leg				$ 34.02
38	134639200		Nut, Leveling Leg, Bushing				$ 31.90
40	5304505328		Cap, Door Vent				$ 15.90
41	5304505329		Spring, Door Vent				$ 15.90
42	5304505381		Magnet, Door Vent				$ 20.24
43	5304535443		Button, Door Vent   (Replaces: 5304505330)				$ 3.92
48	5304505112		Frame, Door, White, External				$ 169.16
50	5304505087		Bracket, Tub Suspension				$ 54.23
51	5304505221		Protector, Tub Bracket, Spring Hook, (2)				$ 15.90
52	131931202		Dampener, Vibration, Foam				$ 17.35
55	3205150		Screw, 8-12b X 0.750				$ 3.55
56	5304505001		Bracket, Hinge				$ 49.16
57	5304505269		Pin, Hinge				$ 15.90
60	134372000		Grommet, Dispenser, Back Panel				$ 30.47
8A	5304505103		Cover, Door Lock, Front Flange			Immediately	$ 236.25
NI	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg				$ 12.76
NI	137146700		Shipping Support, Kit, W/instructions, Bolts & Washers				$ 160.18
NI	134876501		Clip, Shipping Clamp, Rear-panel   (Replaces: 134876500)				$ 19.85
NI	134591400		Plug, Hole, (7), Rear Cabinet				$ 21.27
NI	137262100		Screw, Pan Head Quad, 10-14 X 1.00			Immediately	$ 9.93
NIA	5304505171		Harness, Motor Control		Appelez-nous	-
NIA	5304505172		Harness, Wiring, Door Lock Sngl		Appelez-nous	-
NIB	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
