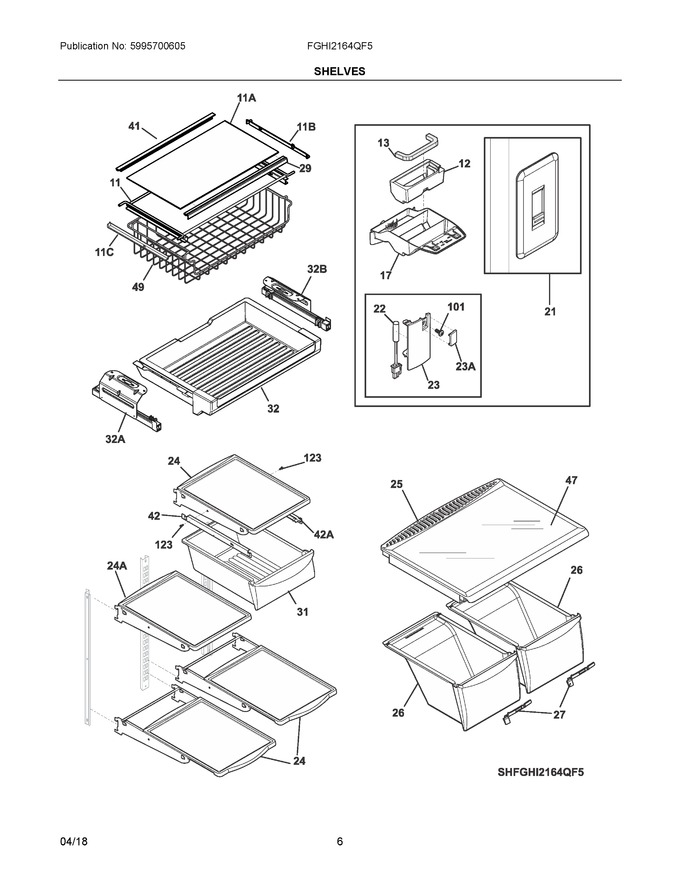

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Ice Maker


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	242087803		Frame-shelf, Full Width		Appelez-nous	-
12	242248501		Diffuser, Air, Light Box		Appelez-nous	-
13	240568608		Gasket, Air Diffuser		Appelez-nous	-
17	5304498968		Housing, Air & Water				$ 65.63
21	242249002		Control Assembly, Temperature, W/user Interfce			Immediately	$ 211.91
22	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
23	241842301		Cap-thermistor			Immediately	$ 34.02
24	240350143		Shelf-"spill-safe", Cantilever, Sliding				$ 179.24
25	242201803		Cover-crisper Pan				$ 123.17
26	242218506		Pan, Crisper, (2), W/humid Cntl				$ 119.78
27	242215901		Slide, Humidity Contrl				$ 18.95
29	242110902		Trim-shelf, Front				$ 34.97
31	240530811		Pan-meat, W/o Graphics, Clear   (Replaces: 240530803)			Immediately	$ 135.77
32	5304503114		Bin Assembly, Under Mullion				$ 206.44
41	242111002		Trim-shelf, Rear		Appelez-nous	-
42	240365401		Track, Meat Pan Hanger, Lh			Immediately	$ 51.26
47	240350609		Insert-pan Cover, Glass			Immediately	$ 162.30
49	5304499069		Basket-frzr, Slide Out		Appelez-nous	-
101	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
123	215005101		Screw, Hanger/rlr Mtg, 8-10 X 7/16				$ 14.89
11A	242087901		Glass-shelf, Full Shelf		Appelez-nous	-
11B	241848701		Cover, Hanger Rh, Wire Basket		Appelez-nous	-
11C	241848702		Cover, Hanger Lh, Wire Basket		Appelez-nous	-
23A	241969001		Cap, Screw				$ 16.69
24A	240355261		Shelf-"spill-safe", Fixed				$ 168.53
32A	5304504694		Slide Bracket, Assembly, Lh, Bin				$ 106.94
32B	5304504693		Slide Bracket, Assembly, Rh, Bin				$ 102.78
42A	240356501		Track, Meat Pan Hanger, Rh			Immediately	$ 56.70
NI	807407068		Label-energy/energuide Estar		Appelez-nous	-
NIA	5303299664		Spacer, Shelf				$ 24.10

    View Diagram in Separate Window       Print Part List
