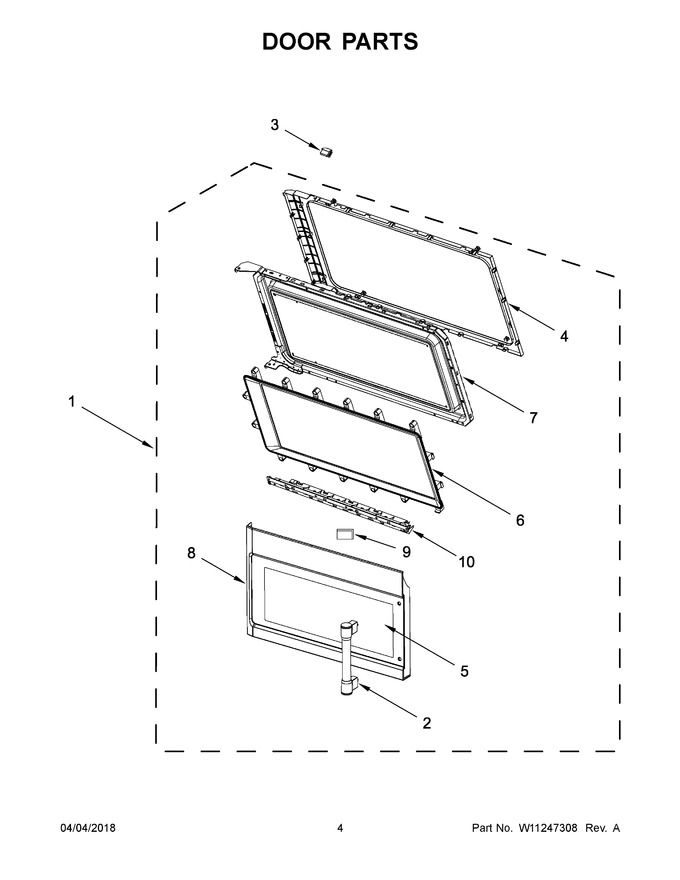

03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11031958 | Door, Complete (stainless) |
|
$ 375.81 | |||||
| 2 | W11034214 | Handle (stainless) (Replaces: W10858177) |
|
$ 162.80 | |||||
| 3 | W10643974 | Stopper, Door |
|
$ 19.41 | |||||
| 4 | W10648086 | Frame, Inner |
|
$ 86.25 | |||||
| 5 | W11034213 | Glass, Outer Door (black) (Replaces: W10860865) |
|
$ 275.27 | |||||
| 6 | W10860860 | Plate, Steam Protection |
|
- | |||||
| 7 | W11432221 | Foil, Door (Replaces: W10891966) |
|
- | |||||
| 8 | W10865172 | Frame, Door (stainless) |
|
- | |||||
| 9 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 36.31 | ||||
| 10 | W10892375 | Trim, Door (black) |
|
- |
