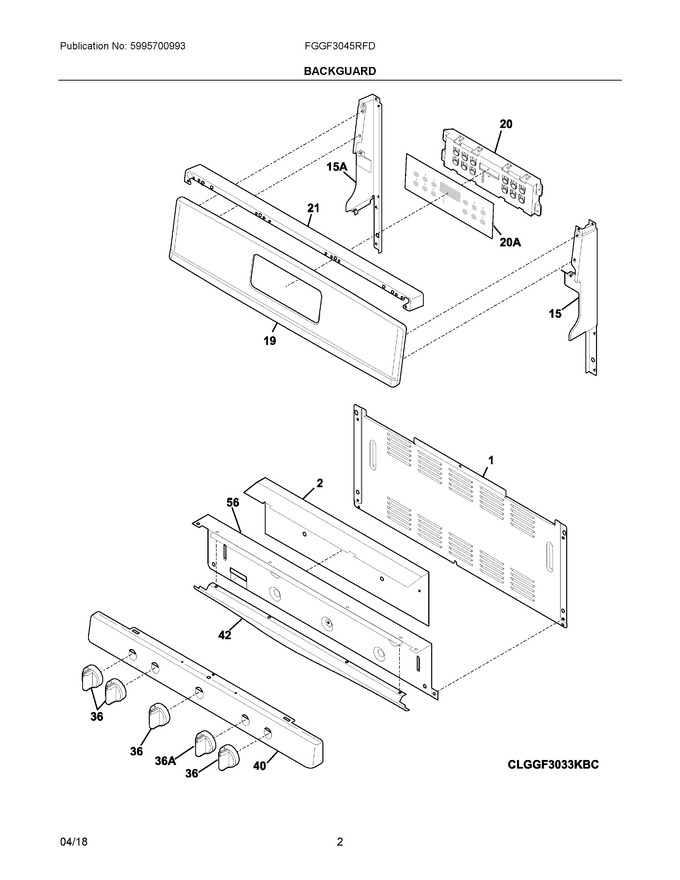

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield, Rear Wall				$ 70.04
2	316497601		Shield, Backguard, Inner				$ 49.40
15	807437109		End Cap, Backguard, Black, Rh				$ 31.66
19	316572406		Panel, Backguard, Br Alum				$ 276.35
20	5304509231		Clock, Es330isb, Black				$ 165.83
21	316546605		Cap, Backguard, Black, Top				$ 66.91
36	5304502763		Knob			Immediately	$ 87.97
40	316606119		Panel-manifold, Stainless				$ 178.99
42	316416204		Trim, Extrusion, Black   (Replaces: 316416200)				$ 43.99
56	316230705		Shield, Backguard, Inner		Appelez-nous	-
15A	807437110		End Cap, Backguard, Black, Lh				$ 29.48
20A	316419353		Overlay, Clock, Black, Es330isb   (Replaces: 316419342)			Immediately	$ 39.43
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
