Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11225863 Gasket, Vent Special Order $ 22.29

2 W11225868 Duct, Vent Appelez-nous -
3 W11243344 Gasket   (Replaces: W11226131) In-Stock Immediately $ 12.99

4 W11243345 Deflector   (Replaces: W11226138) Special Order $ 69.89

5 W11226146 Hook, Door Latch Special Order $ 86.24

6 W11226241 Strike, Latch Special Order $ 86.23

7 W11226261 Gasket Special Order $ 22.11

8 W11226196 Inner Door Assembly Special Order $ 369.54

9 W11689795 Dispenser   (Replaces: W11226203) In-Stock Immediately $ 241.35

10 W11243347 Door Stiffener   (Replaces: W11226206) In-Stock Immediately $ 36.23

11 W11243348 Snap Ring   (Replaces: W11226223) In-Stock Immediately $ 22.24

12 W11226198 Hinge Assembly (left) In-Stock Immediately $ 232.65

13 W11334448 Wiring Harness Appelez-nous -
W11226199 Hinge Assembly (right) Special Order $ 232.65


    View Diagram in Separate Window     Print Icon   Print Part List

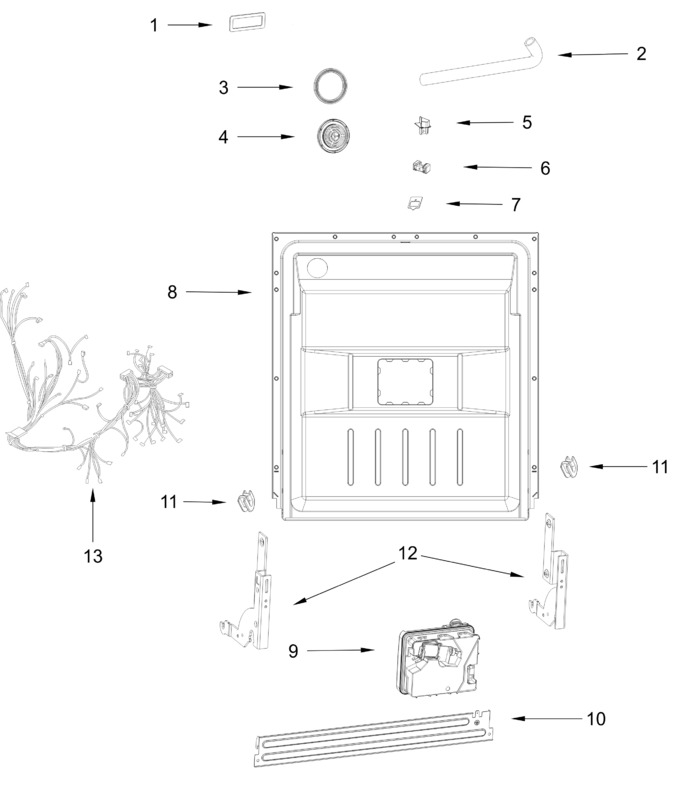

Diagram for UDT555SAHP0
