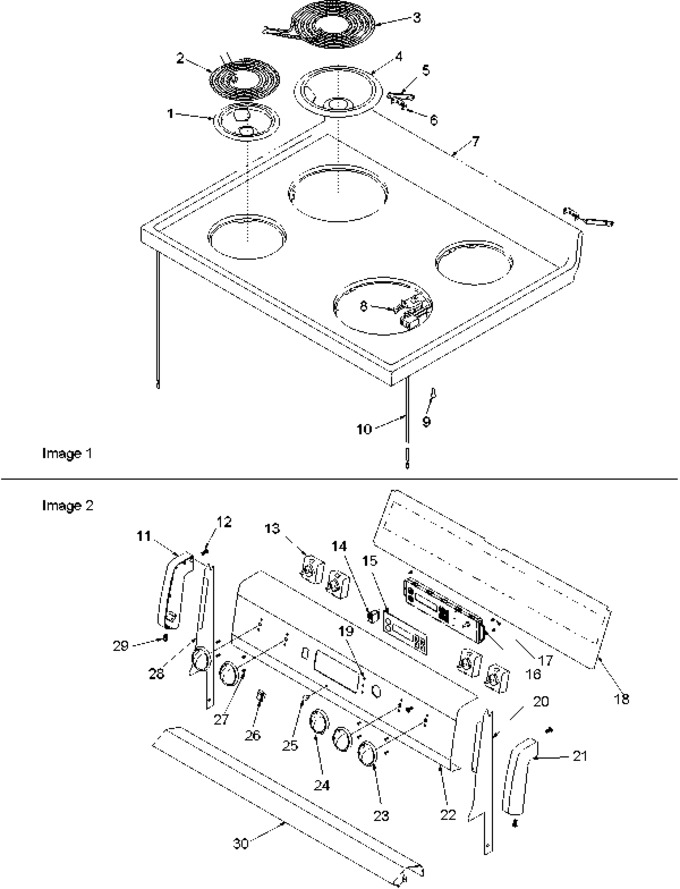

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10196406 | Bowl, Bnr 6``(chr) (Replaces: 308648K) |
|
Immediately | $ 12.05 | ||||
| 2 | WPW10259868 | Element, 4 Turn (1500w) 6`` (Replaces: 31734602) |
|
Immediately | $ 112.28 | ||||
| 3 | WPW10259865 | Element, 5 Turn 2600w 8`` (Replaces: 31734606) |
|
Immediately | $ 105.92 | ||||
| 4 | WPW10196405 | Bowl, Burner 8`` (chrome) (Replaces: 308649K) |
|
Immediately | $ 15.56 | ||||
| 5 | Y0315931 | Pin, Hinge |
|
- | |||||
| 6 | Y0306150 | Brkt, Hinge Strap Mtg |
|
- | |||||
| 7 | 306899L | Main Top-electric Upswept |
|
- | |||||
| 8 | 330031 | Kit, Top Element Term Block (Replaces: Y0089336) |
|
Immediately | $ 14.48 | ||||
| 9 | 31717001 | Spacer, Snap-in |
|
- | |||||
| 10 | Y0315430 | Support, Maintop |
|
- | |||||
| 11 | WP315843B | End Cap Lh (Replaces: 315843B) |
|
$ 52.60 | |||||
| 12 | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: 31750410) |
|
Immediately | $ 12.65 | ||||
| 13 | 31926703 | Switch, Infinite Csi (r) |
|
- | |||||
| 13 | 31926701 | Switch, Infinite Csi (y) |
|
- | |||||
| 14 | 31722801 | Light, Indicator (125v) |
|
- | |||||
| 15 | 31777907B | Overlay, Mylar |
|
- | |||||
| 16 | 31771301 | Krc Electric |
|
$ 367.01 | |||||
| 17 | WP693995 | Screw, No.8-18 X 3/8 P Hex Wsh T (Replaces: 31750432) |
|
Immediately | $ 6.47 | ||||
| 18 | 0315887 | Cover, Upper Rear |
|
- | |||||
| 19 | 31780501 | Lens, Ind Light (mini Snap In) |
|
- | |||||
| 20 | 315876B | Bkgd. Support-rh |
|
- | |||||
| 21 | WP315841B | End Cap Rh (Replaces: 315841B) |
|
$ 53.06 | |||||
| 22 | 31779432B | Pnl, Bkgd (black) |
|
- | |||||
| 23 | 31932301B | Knob, Infinite Switch (blk) |
|
- | |||||
| 24 | 31760307B | Knob, Thermostat Krc (blk) |
|
- | |||||
| 25 | 31780502 | Lens, Indicator Light |
|
- | |||||
| 26 | Y0063997 | Switch, Rocker |
|
- | |||||
| 27 | 31750714 | Screw, No.8-32 X 1/4 |
|
- | |||||
| 28 | 315877B | Bkgd. Support-lh |
|
- | |||||
| 29 | 31750409 | Screw, No.8-18 X 1/4 Ptrshd(blk) |
|
- | |||||
| 30 | 31722704B | Shield, Bkgd Trim Heat |
|
- | |||||
| NI | 0308408 | Clip,element |
|
- | |||||
| NI | Y0315919 | Harness, Coil Elem. R.h. |
|
- | |||||
| NI | 31750422 | Screw, No.8-18 X 1/4 P Trs Hd |
|
- | |||||
| NI | 31915101 | Harness, Bkgd |
|
- | |||||
| NI | Y0315918 | Harness, Coil Elem L.h. |
|
- |
