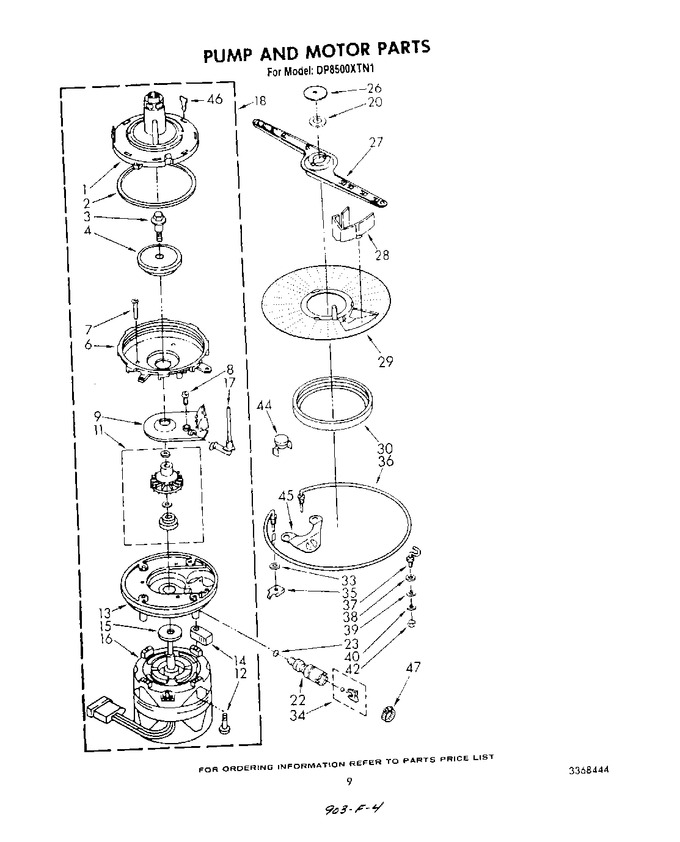

06 - Pump And Motor


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3367439		Pump Housing, Upper				$ 28.25
2	718259		Seal, Ring		Appelez-nous	-
3	WP3371152		Screw, 10-32 X .75   (Replaces: 303516)				$ 7.61
4	303517		Impeller		Appelez-nous	-
6	718222		Pump Housing, Lower				$ 51.09
7	718257		Screw, 8-18 X 1.38		Appelez-nous	-
8	WP9741232		Screw, 8-18 X .62   (Replaces: 718258)			Immediately	$ 4.56
9	300084		Coverplate		Appelez-nous	-
11	675468		Kit, Drain Impeller		Appelez-nous	-
12	301817		Screw, 13-16 (4)		Appelez-nous	-
13	3367203		Base, Pump				$ 52.21
14	3367197		Support, Pump (4)				$ 5.70
15	W10909679		Slinger   (Replaces: 303252)				$ 19.49
16	303574		Motor		Appelez-nous	-
17	718629		Bleeder Assembly		Appelez-nous	-
18	3367440		Pump & Motor Assembly		Appelez-nous	-
20	719576		Bearing, Nozzle				$ 7.48
22	675238		Valve, Check (includes Illus. 23 & 34)   (Replaces: 300800)				$ 78.04
23	95080		``o`` Ring		Appelez-nous	-
26	3367910		Cap, Nozzle				$ 39.70
27	302767		Spray Arm, Lower		Appelez-nous	-
28	300988		Guard, Screen		Appelez-nous	-
29	718226		Screen, Sump		Appelez-nous	-
30	717000		Gasket, Pump				$ 78.98
33	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 6.47
34	675488		Check Ball & Retainer		Appelez-nous	-
35	718537		Nut, 7/16-20 (2)		Appelez-nous	-
36	717141		Alternate		Appelez-nous	-
36	719687		Alternate		Appelez-nous	-
36	302113		Alternate		Appelez-nous	-
36	302562		Alternate		Appelez-nous	-
36	660318		Heater		Appelez-nous	-
37	717096		Support, Heater (2)		Appelez-nous	-
38	717289		Washer, Retainer (2)		Appelez-nous	-
39	14351		Washer (2)		Appelez-nous	-
40	711284		Washer (2)		Appelez-nous	-
42	120614		Nut, 10-32 (2)		Appelez-nous	-
44	661504		Thermostat		Appelez-nous	-
44	303282		Alternate				$ 31.74
44	303652		Alternate		Appelez-nous	-
45	3368272		Bracket, Thermostat		Appelez-nous	-
46	301936		Key, Pump Housing		Appelez-nous	-
47	WP3367052		Clamp, Hose   (Replaces: 3367052)				$ 7.49
