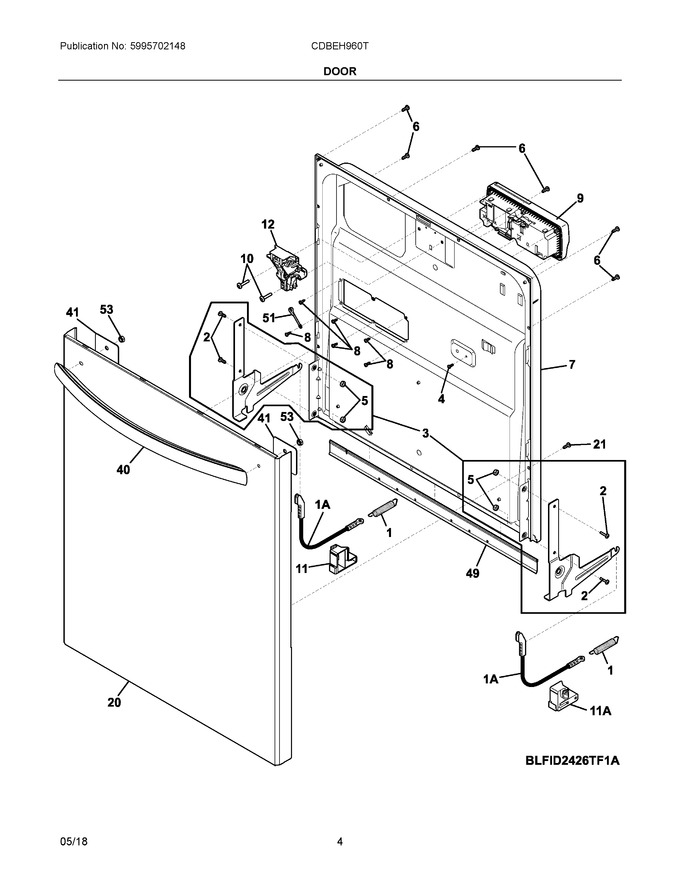

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154579101		Spring, Friction Pulley, (2)			Immediately	$ 40.50
2	154093301		Screw, Arm Assy, (4)			Immediately	$ 2.12
3	5304513274		Counterbalance Arm, Kit, Lh & Rh, W/screws-nuts			Immediately	$ 66.56
4	808326801		Screw, Hex Hd, 8-18 X .4, W/washer   (Replaces: 154825401)				$ 2.84
5	154079601		Nut, Arm Assy, And Handle Mtg.				$ 0.41
6	154783101		Screw, Plt, 8-10			Immediately	$ 7.09
7	5304520007		Liner, Door Assembly, Grey   (Replaces: 5304502918)			Immediately	$ 155.43
8	154294701		Screw, #7 Plas .375, (6), Disp. Assy.				$ 9.22
9	5304506521		Dispenser, Det/rinse Aid, W/level Ind.			Immediately	$ 99.05
10	154103702		Screw, Latch Mtg, (2)				$ 13.46
11	154579201		Pulley, Friction, Lh			Immediately	$ 47.48
12	5304527418		Latch Assembly, Door   (Replaces: 5304516818)			Immediately	$ 29.00
20	5304510719		Door Assembly, Outer, Dark Stainless, W/insulation				$ 252.31
21	154754701		Screw, Truss Hd, 8-18 Type Ab				$ 3.55
40	5304510709		Handle, Door, Dark Stainless				$ 164.11
41	154603401		Plate, Handle Support, (2)			Immediately	$ 16.30
49	5304500204		Gasket, Door, Bottom			Immediately	$ 29.79
51	154320301		Clamp, Drip Loop, Wire				$ 62.69
53	154425001		Nut, Keps, (2), Handle Mtg.				$ 9.93
11A	154579202		Pulley, Friction, Rh			Immediately	$ 47.48
1A	154756401		Cable, Friction Pulley, (2)   (Replaces: 154578801)			Immediately	$ 11.89
NI	154647101		Hinge Pin, Arm Assy				$ 14.18
NI	154686401		Bearing, Hinge Pin				$ 10.63
NI	5304538695		Insulation, Door   (Replaces: 154253201)		Appelez-nous	-
NIA	5304525214		Shield, Dispenser Assy   (Replaces: 154719301)			Immediately	$ 10.13
