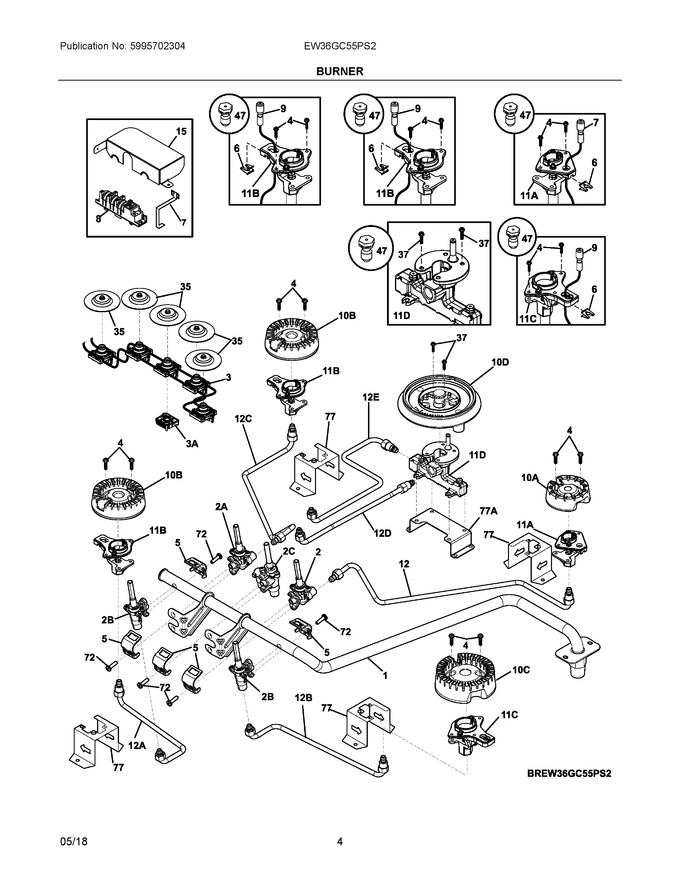

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304508588 | Manifold Pipe |
|
- | |||||
| 2 | 5304508471 | Valve, Saddle, 670/750 Btu, Orange Stem |
|
$ 68.26 | |||||
| 3 | 5304527828 | Switch Assembly, Ignitor, W/harness (Replaces: 305595115) |
|
Immediately | $ 32.91 | ||||
| 4 | 316240600 | Screw, Hex Wash, 6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 12.13 | ||||
| 5 | 357733402 | Bracket, Valve Fixing |
|
$ 9.66 | |||||
| 6 | 5304538490 | Spring Clip, Ignitor (Replaces: 5304516455) |
|
$ 4.08 | |||||
| 7 | 5304516453 | Ignitor, Top Burner, 380mm, W/wiring |
|
$ 20.03 | |||||
| 8 | 5304537114 | Module, Spark, 6 Outputs (Replaces: 5304505696) |
|
Immediately | $ 47.88 | ||||
| 9 | 5304516454 | Ignitor, Top Burner, 520mm, W/wiring |
|
$ 22.45 | |||||
| 12 | 305596000 | Tubing, Top Burner, Rh Rear |
|
- | |||||
| 13 | 318024209 | Deflector, Spark Module |
|
$ 21.16 | |||||
| 14 | 5304519943 | Regulator, Pressure (Replaces: 318122727) |
|
$ 129.93 | |||||
| 15 | 5304508591 | Shield, Heat |
|
- | |||||
| 35 | 5304508440 | Bushing, Insulating |
|
Immediately | $ 11.38 | ||||
| 37 | 305309701 | Screw, Phil, 4.2 X 6.5, (20) |
|
$ 5.67 | |||||
| 47 | 5304506289 | Lp Kit, Gas Conversion |
|
$ 92.85 | |||||
| 72 | 5304508436 | Screw, Saddle Valve, M4 |
|
- | |||||
| 77 | 318920309 | Bracket, Burner Mtg, (3) |
|
- | |||||
| 10A | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 56.70 | ||||
| 10B | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 52.45 | ||||
| 10C | 316438600 | Burner, Sealed, 14k |
|
Immediately | $ 79.80 | ||||
| 10D | 5304501023 | Burner Assembly, G5 |
|
$ 165.99 | |||||
| 11A | 5304516449 | Holder, Orifice/ignitor, 5k, W/nat Orifice |
|
$ 43.99 | |||||
| 11B | 5304516450 | Holder, Orifice/ignitor, 9.5k, W/nat Orifice |
|
Immediately | $ 43.99 | ||||
| 11C | 5304516452 | Holder, Orifice/ignitor, 14k, W/nat Orifice |
|
$ 54.15 | |||||
| 11D | 5304529110 | Ignitor/orifice Assy., Top Burner, Twin, 18k, W/holder (Replaces: 316440108) |
|
Immediately | $ 152.08 | ||||
| 12A | 305595700 | Tubing, Top Burner, Lh Front |
|
- | |||||
| 12B | 305595900 | Tubing, Top Burner, Rh Front |
|
- | |||||
| 12C | 305595800 | Tubing, Top Burner, Lh Rear |
|
- | |||||
| 12D | 5304508590 | Tube, Dual Burner, Secondary |
|
- | |||||
| 12E | 5304508589 | Tube, Dual Burner, Main |
|
- | |||||
| 2A | 5304508472 | Valve, Saddle, 1350/1500 Btu, Pink Stem |
|
$ 68.26 | |||||
| 2B | 5304508464 | Valve, Saddle, 1800/2000 Btu, Red Stem |
|
$ 65.98 | |||||
| 2C | 5304508579 | Valve, Saddle, 1500/2000 Btu, Yellow Stem, Twin Burner |
|
$ 148.39 | |||||
| 3A | 5304508439 | Adapter, Switch, Dual Valve |
|
$ 15.92 | |||||
| 77A | 305583001 | Bracket, Burner, Dual |
|
$ 10.66 | |||||
| NI | 305338602 | Screw |
|
- | |||||
| NI | 305338702 | Screw, (4) |
|
- | |||||
| NIA | 5304516456 | Wire, Grounding |
|
- | |||||
| NIA | 803910601 | Screw |
|
- | |||||
| NIB | 5303323140 | Screw, Ground (Replaces: 305452800) |
|
- | |||||
| NIDA | 5304516459 | Wiring, Ignitor, G5-600mm, Twin Burner, W/sleeve |
|
$ 11.08 | |||||
| NIDB | 316566901 | Sleeve, Insulator |
|
$ 12.89 |
