SELECT A DIAGRAM

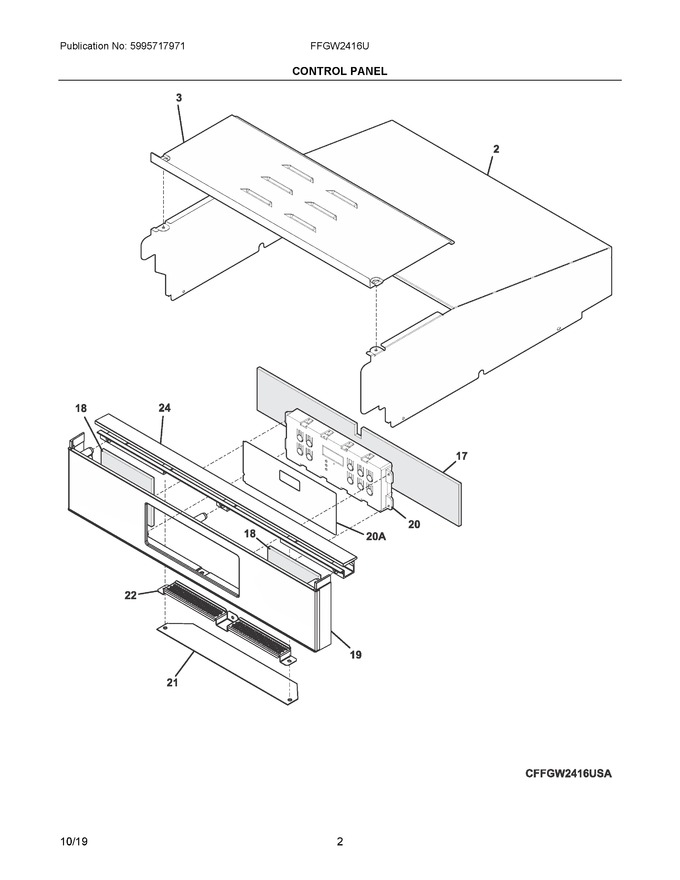

01 - Cover Sheet


02 - Control Panel


03 - Burner


04 - Body


05 - Door/drawer


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	139029900		Cover, Wrapper, Top		Appelez-nous	-
3	139030902		Cover, Oven Top, Front		Appelez-nous	-
17	5304513700		Insulation, Control Panel		Appelez-nous	-
18	808181801		Insulation, Control Panel, (2)		Appelez-nous	-
19	5304517585		Control Panel, Assembly, Black, W/overlay		Appelez-nous	-
20	5304513047		Controller, Electronic, Es150		Appelez-nous	-
21	5304513702		Shield, Control		Appelez-nous	-
22	808752302		Trim, Vent Cover, Black, Top		Appelez-nous	-
24	139099502		Trim, Vent, Black, Control Panel		Appelez-nous	-
20A	316419148		Overlay, Eoc, Black, Es150		Appelez-nous	-
NI	5304504225		Screw, Plastite, 48 #7-18x12.7, (4)		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
