01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

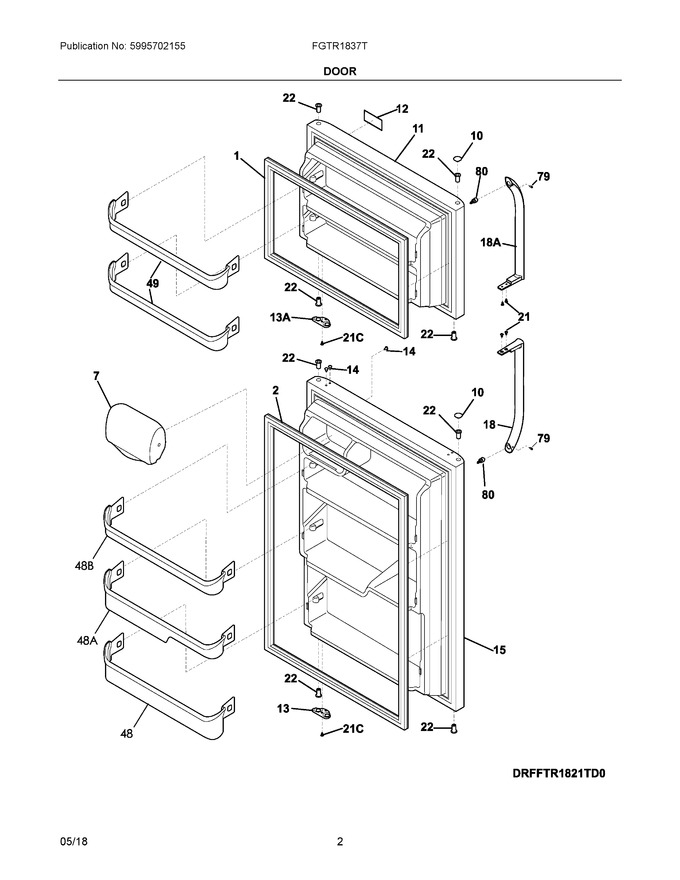

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193209		Gasket-frzr Door, Black, Magnetic			Immediately	$ 197.62
2	242193212		Gasket-refr Door, Black, Magnetic			Immediately	$ 191.86
7	240337712		Door-dairy			Immediately	$ 36.41
10	240381303		Plug-button, Black, Hinge Brg Hole				$ 69.77
11	807460041		Freezer Door, Complete, Black Stainless				$ 381.80
12	5304510904		Nameplate, Black Stainless				$ 54.60
13	240312422		Door Stop, Black, Ref				$ 15.17
14	240494003		Plug-button, Black				$ 18.20
15	807460161		Refrigerator Door, Complete, Black Stainless				$ 318.89
18	241977509		Handle, Door, Black Stainless, Ref Rhs, W/set Screw				$ 217.58
21	240383407		Screw, Truss Hd Quad, 10 X 16, Black   (Replaces: 240383408)				$ 12.76
22	5304507147		Bearing-hinge, Black, (8)			Immediately	$ 7.59
48	240338101		Bin-door			Immediately	$ 52.37
49	240495805		Bin-door, Pseudo, Frzr				$ 50.94
79	218755405		Screw-set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop, Black, Frzr				$ 21.27
18A	241977510		Handle, Door, Black Stainless, Frz Rhs, W/set Screw				$ 217.58
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
48A	240337901		Bin-door			Immediately	$ 52.13
48B	240338001		Bin-door			Immediately	$ 34.96
NIA	241601001		Wrench, Allen		Appelez-nous	-
