SELECT A DIAGRAM

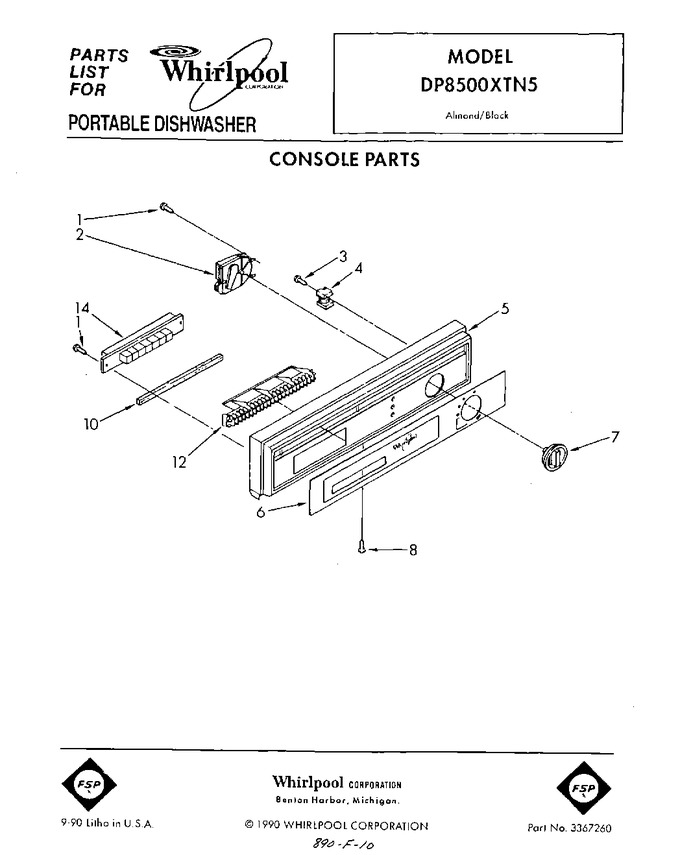

01 - Console


02 - Cabinet


03 - Door


04 - Tub , Literature And Optional


05 - Dishrack


06 - Pump And Motor


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP304231		Screw, 8-18 X 1/2 (5)   (Replaces: 304231)			Immediately	$ 6.98
2	3368830		Timer		Appelez-nous	-
3	304232		Screw, 7-18 X 1-3/8		Appelez-nous	-
4	304658		Relay, Start		Appelez-nous	-
5	3367887		Console (includes Illus. 6 & 12)		Appelez-nous	-
6	3367840		Insert, Decorative		Appelez-nous	-
7	3367282		Knob, Timer		Appelez-nous	-
8	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 304234)			Immediately	$ 7.01
10	3368537		Foam, Seal		Appelez-nous	-
12	304602		Grill, Vent		Appelez-nous	-
14	3367739		Switch Pushbutton		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
