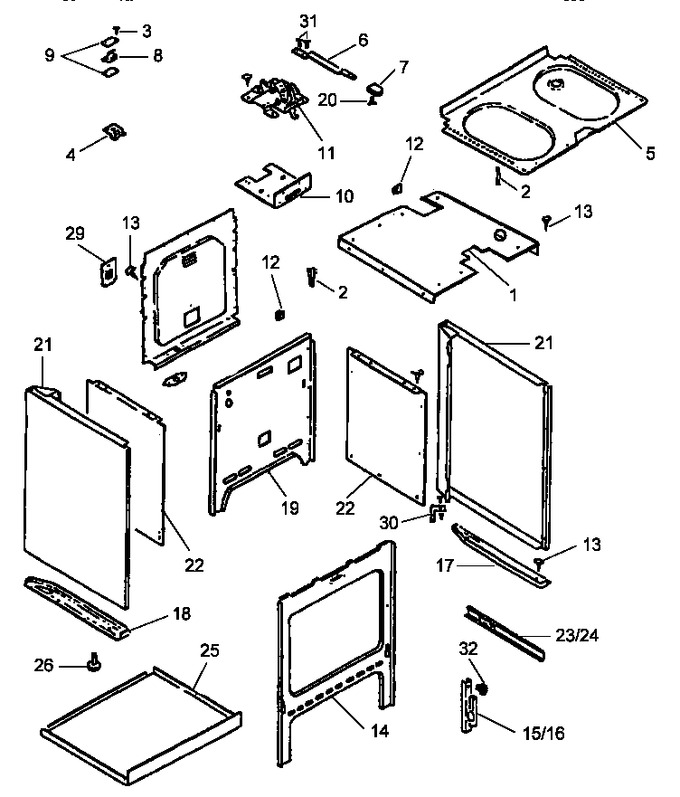

01 - Backguard Assy


02 - Cabinet Assy


03 - Electrical Components


04 - Main Top And Oven Assy


05 - Oven Door Assy


06 - Storage Drawer Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0309773		Retainer, Top Insulation		Appelez-nous	-
2	0304502		Hinge, Strap		Appelez-nous	-
3	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
4	Y0302316		Bracket, Switch		Appelez-nous	-
5	309429CG		Baffle, Drip (enamel)		Appelez-nous	-
6	303039B		Latch Arm		Appelez-nous	-
7	0302300		Knob, Latch Handle (blk)		Appelez-nous	-
8	Y0065780		Switch, Clean Circuit				$ 11.77
9	Y0091523		Insulation, Esm		Appelez-nous	-
10	0314084		Bracket, Latch Mtg.		Appelez-nous	-
11	Y0314079		Latch, Oven Door (elec)		Appelez-nous	-
12	Y0091587		Cable, Clip Esm		Appelez-nous	-
13	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
14	Y00000000		See Note Front Frame -- (not Field Replaceable		Appelez-nous	-
15	Y0066954		Kit, Door Hinge (rh-ss)		Appelez-nous	-
16	Y0066953		Kit, Door Hinge(lh-hs)		Appelez-nous	-
17	Y0314192		Brace, Leveling Leg (rt)		Appelez-nous	-
18	Y0314191		Brace, Leveling Leg (lt)		Appelez-nous	-
19	0309081		Retainer, Rear Insul.		Appelez-nous	-
20	Y0071914		Screw, Tt Ab No.8 X 3/8``		Appelez-nous	-
21	306081W		Panel, Side (wht)		Appelez-nous	-
22	0304282		Retainer, Insulation (side)		Appelez-nous	-
23	0306403		Track, Storage Dwr Rh		Appelez-nous	-
24	Y0306402		Track, Storage Dwr Lh		Appelez-nous	-
25	Y0308662		Retainer, Insulation (bottom)		Appelez-nous	-
26	314187B		Leg,leveling Xxx		Appelez-nous	-
29	Y0058435		Access Plate, Rear		Appelez-nous	-
30	Y0307160		Anti-tip Pack		Appelez-nous	-
31	Y0078780		Screw Latch Arm Mounting		Appelez-nous	-
32	Y0300830		Screw No.10-32 X .375		Appelez-nous	-
NI	Y0307342		Cover, Rear		Appelez-nous	-
NI	0058311		Plate, Main Inlet Wire		Appelez-nous	-
