View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

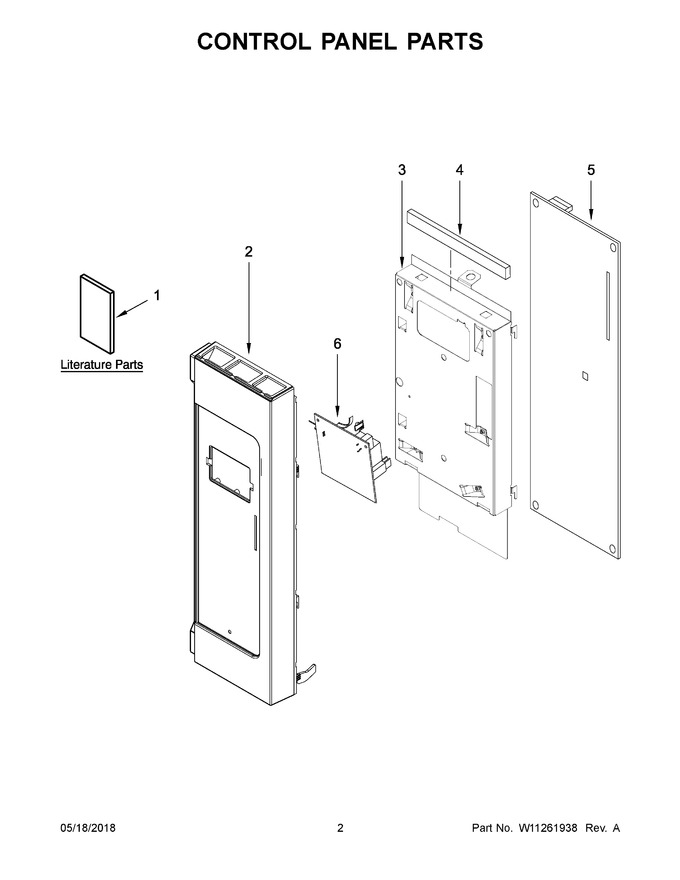

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11084413 | Installation Instructions |
|
- | |||||
| 2 | W11256450 | Control Panel Assembly (includes Lens And Membrane Switch) (white) (Replaces: W11247372) |
|
- | |||||
| 3 | W10833366 | Backer, Control |
|
- | |||||
| 4 | W10833531 | Seal, Control |
|
$ 21.01 | |||||
| 5 | W11342928 | Pcba, Appliance Control Unit (Replaces: W11044728) |
|
$ 246.18 | |||||
| 6 | W11333816 | Pcba, User Interface (Replaces: W11044691) |
|
$ 159.38 | |||||
| 1A | W11084439 | Use And Care Guide |
|
- | |||||
| 1B | W11084437 | Quick Reference Guide |
|
- | |||||
| 1C | W11219412 | Tech Sheet |
|
- | |||||
| 2A | W11256449 | Control Panel Assembly (includes Lens And Membrane Switch) (black) (Replaces: W11247371) |
|
- | |||||
| 2B | W11256451 | Control Panel Assembly (includes Lens And Membrane Switch) (biscuit) (Replaces: W11247374) |
|
- |
