SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

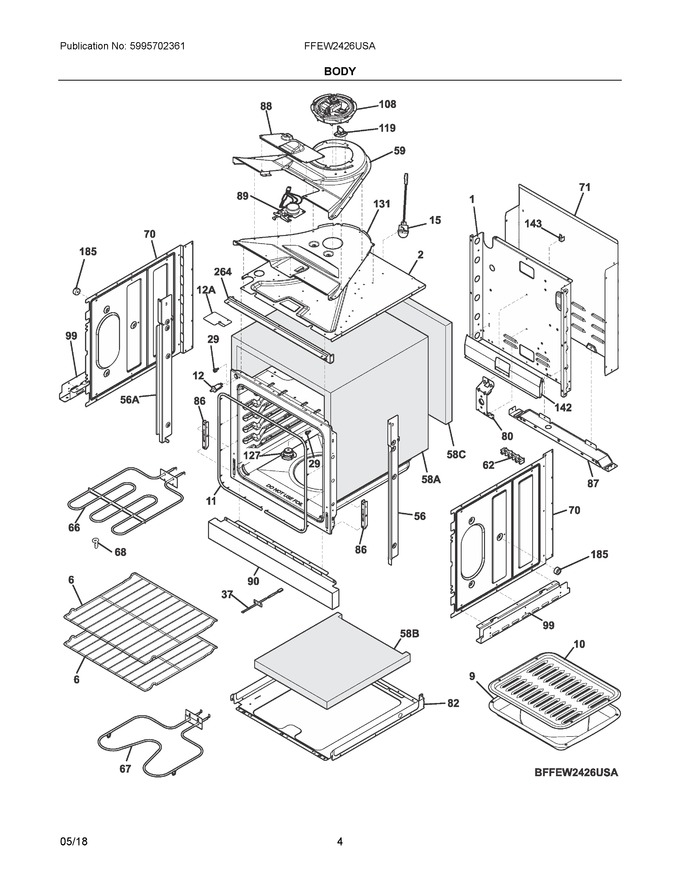

03 - Body


04 - Door


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139029600		Panel, Main Back		Appelez-nous	-
2	139028800		Shield, Insulation, Top		Appelez-nous	-
6	139012300		Rack, Oven, (2)		Appelez-nous	-
9	316081900		Pan, Broileroptional Access0ry				$ 65.89
10	316082000		Insert, Broiler Panoptional Access0ry				$ 68.85
11	807108501		Seal, Oven Door		Appelez-nous	-
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
29	316517600		Bumper, Front, Main				$ 12.05
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
56	139079402		Trim, Filler, Black, Rh Side		Appelez-nous	-
59	139027600		Duct, Cooling Fan, Upper				$ 85.76
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
66	139203500		Element, Broil, 6 Pass, 3400w		Appelez-nous	-
67	139086600		Element, Bake, 4 Pass, 2100w		Appelez-nous	-
68	5304403015		Support, Hanger, Broil Element				$ 35.04
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 72.05
71	139029000		Shield, Rear Wire		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
82	139033200		Shield, Insulation, Lower		Appelez-nous	-
86	318561100		Receptacle, Hinge, (2)				$ 21.23
87	139074000		Bracket, Support, Cable Box		Appelez-nous	-
88	5304506964		Cover, Latch Motor   (Replaces: 139027900)				$ 24.10
89	5304528836		Motor, Latch Assembly   (Replaces: 139078301)			Immediately	$ 76.34
90	139905004		Trim, Bottom, Stainless		Appelez-nous	-
99	139032900		Bracket, Bottom, (2)		Appelez-nous	-
108	807123002		Motor Assembly, Fan, No He Sensor				$ 203.41
119	318578506		Thermostat, Safety, 105c			Immediately	$ 58.19
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct, Cooling Fan, Lower				$ 73.00
142	139029700		Shield, Air Deflector		Appelez-nous	-
143	318172904		Support, Wire		Appelez-nous	-
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
264	139086101		Trim, Vent, Black, Upper		Appelez-nous	-
12A	5304504232		Shield, Door Switch		Appelez-nous	-
56A	139079502		Trim, Filler, Black, Lh Side		Appelez-nous	-
58A	139013600		Insulation, Oven Wrapper		Appelez-nous	-
58B	139028600		Insualtion, Cavity, Bottom		Appelez-nous	-
58C	139028500		Insulation, Cavity, Rear		Appelez-nous	-
70A	139000601		Shield, Insulation, Sides, (2)				$ 72.05
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	318165800		Spacer, Glass, Foam				$ 17.72
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 13.46
NI	5304506983		Box & Wires Assy   (Replaces: 318394441)				$ 133.47
NI	5304513884		Harness, Wiring, Main		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	318579001		Bracket, Wire				$ 11.08
NIA	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIB	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67

    View Diagram in Separate Window       Print Part List
