View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Electrical Parts
05 - Wash System
06 - Frame & Tub
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

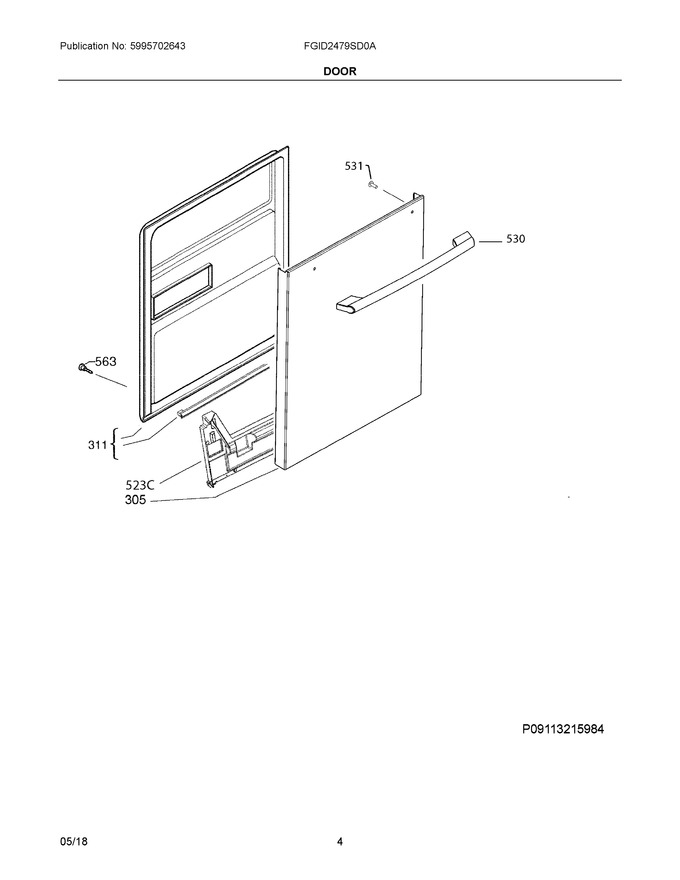

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 305 | 5304520301 | Outer Door, Black Stainless (Replaces: A00030307) |
|
$ 452.69 | |||||
| 311 | A00010702 | Liner, Door |
|
$ 397.30 | |||||
| 530 | 5304532243 | Handle, Towel Bar, Dark Stainless (Replaces: 154724906) |
|
$ 149.80 | |||||
| 531 | 405537692 | Screw, Door Handle, M4 X 10mm Ph |
|
$ 7.23 | |||||
| 563 | 405538278 | Screw Kit, Door, 3.5x13/19/40, (6/3/5 Pcs), Complete |
|
$ 16.34 | |||||
| 523C | 807194801 | Support, Kickplate |
|
$ 129.41 | |||||
| NI | 5304533456 | Screw, Kickplate, 3-5 X 9, (2) (Replaces: 405530674) |
|
$ 3.50 | |||||
| NI | 405530675 | Plate, Door Handle, (2) |
|
- | |||||
| NI | 405530684 | Nut, Door Handle, (2) |
|
$ 52.88 | |||||
| NI | 405526082 | Screw, Kit, 4-2 X 11, (6pcs), Detergent Disp. |
|
$ 6.51 |
