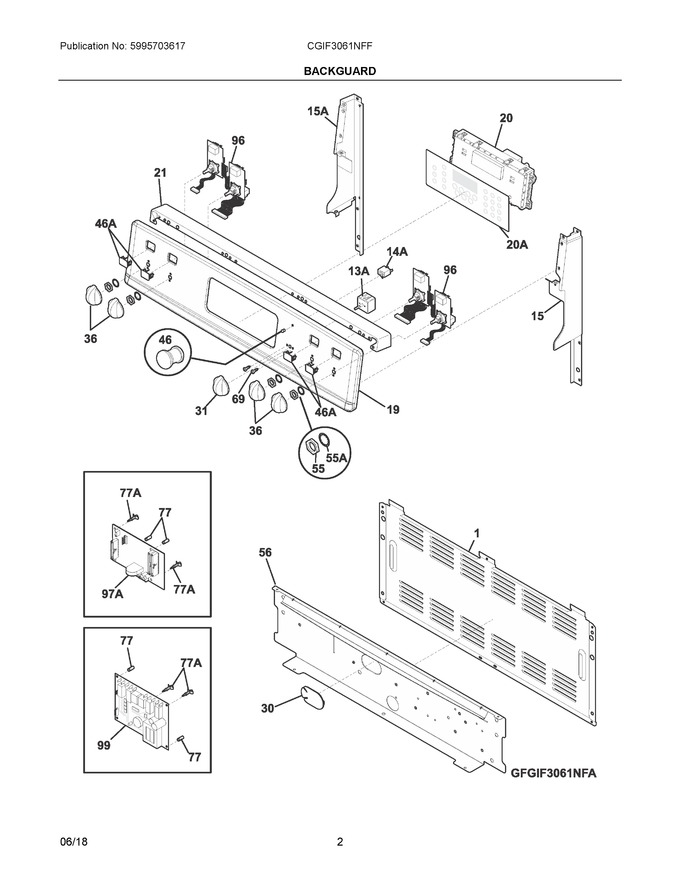

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316557600 | Shield, Rear Wall |
|
$ 70.04 | |||||
| 15 | 316546710 | Cap, Backguard, Black, Rh End |
|
$ 98.52 | |||||
| 19 | 316572443 | Panel, Backguard, Br Alum |
|
$ 251.00 | |||||
| 20 | 5304495522 | Controller, Electronic, Es540 (Replaces: 316560132) |
|
Immediately | $ 474.64 | ||||
| 21 | 316546605 | Cap, Backguard, Black, Top |
|
$ 66.91 | |||||
| 30 | 316577600 | Plug, Button, Oval, Harness |
|
$ 14.89 | |||||
| 31 | 316564407 | Knob, Control, Stainless, (5) |
|
$ 121.35 | |||||
| 36 | 316564408 | Knob, Control, Stainless, Mini Oven |
|
$ 119.23 | |||||
| 46 | 316557300 | Lens-light/lamp, Indicator, Clear |
|
Immediately | $ 16.77 | ||||
| 55 | 316247700 | Nut, Mounting |
|
$ 18.20 | |||||
| 56 | 316370109 | Shield, Backguard, Black |
|
$ 45.15 | |||||
| 69 | 5303288565 | Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg |
|
$ 3.12 | |||||
| 77 | 316247900 | Spacer, Power Board |
|
$ 44.65 | |||||
| 96 | 316445605 | Board, Display, Controls, Potentiometers |
|
$ 348.74 | |||||
| 99 | 316435703 | Board, Power Supply |
|
Immediately | $ 394.48 | ||||
| 13A | 5304508926 | Switch, Infinite, Warmer |
|
Immediately | $ 84.18 | ||||
| 14A | 316022500 | Light/lamp, Indicator, Black, 125 V |
|
Immediately | $ 53.57 | ||||
| 15A | 316546711 | Cap, Backguard, Black, Lh End |
|
$ 43.20 | |||||
| 20A | 316419836 | Overlay, Clock, Black, Es515 |
|
Immediately | $ 75.93 | ||||
| 46A | 316448000 | Lens, Led Display |
|
$ 29.51 | |||||
| 55A | 316247800 | Washer, Lock, Mtg |
|
$ 18.20 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| 97A | 316578323 | Board, Power, Uib |
|
$ 245.40 | |||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 5.67 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316580519 | Harness, Wiring, To Membrane, Uib |
|
- | |||||
| NI | 316580520 | Harness, Wiring, Uib, To Membrane |
|
- | |||||
| NI | 5304517543 | Harness, Wiring, Uib, To Filter Board (Replaces: 316580518) |
|
$ 55.42 | |||||
| NI | 316305000 | Bushing, Open Hole, Induction Leads |
|
$ 21.89 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 |
