SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard

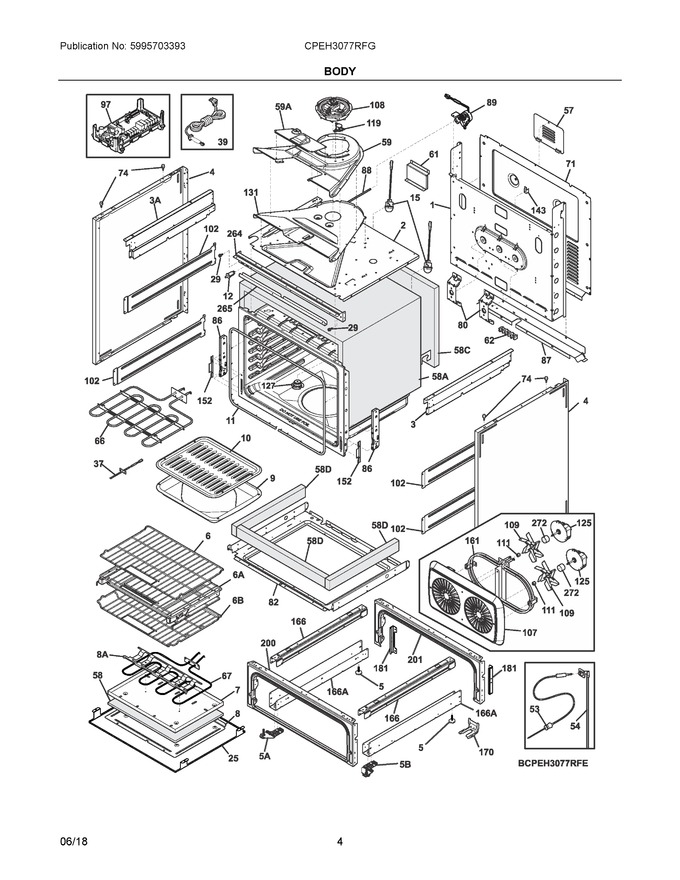

03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809146002		Panel, Main Back				$ 128.29
2	139028104		Shield, Insulation, Top		Appelez-nous	-
3	809128202		Panel, Upper Side, Rh		Appelez-nous	-
4	807226106		Panel, Bodyside, Black, (2)				$ 136.69
5	316498903		Leveling Leg				$ 12.13
6	139011600		Rack, Oven, W/handle				$ 124.74
7	318297303		Box, Bake Element				$ 125.84
8	318359500		Panel, Service				$ 140.09
9	318138801		Pan, Broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert, Broiler Panoptional Access0ry		Appelez-nous	-
11	139036701		Seal, Oven Door				$ 98.99
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
25	5304500181		Shield, Heat, Storage		Appelez-nous	-
29	316517600		Bumper, Front, Main				$ 12.05
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
39	318113111		Cord, Electric				$ 95.55
53	5304504202		Probe, Meat Temp, Red			Immediately	$ 106.19
54	139017203		Receptacle Assy, Meat Probe			Immediately	$ 153.09
57	316283600		Cover, Access				$ 12.50
58	318294912		Insullation, Bake Element				$ 97.17
59	139027600		Duct, Cooling Fan, Upper				$ 85.76
61	5304500116		Bracket, Support, E Top		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	5304521861		Element, Broil, 8 Pass, 4000w   (Replaces: 139000900)			Immediately	$ 90.25
67	5304521880		Element, Bake, 2500w, 8 Pass   (Replaces: 139026700)			Immediately	$ 114.97
71	809123201		Shield, Rear, Lower				$ 63.08
74	318141910		Bumper, Bodyside, (4)				$ 3.68
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
82	139008201		Shield, Insulation, Lower		Appelez-nous	-
86	139026900		Receptacle, Hinge, Dual Spring				$ 32.61
87	5304502893		Bracket, Cable Mtg.		Appelez-nous	-
88	808721601		Rod, Door Latch				$ 53.85
89	5304528925		Motor Assy., Door Latch   (Replaces: 808721803)				$ 117.12
97	316472807		Circuit Board, Assembly, Ovc1, W/housing   (Replaces: 316472802)			Immediately	$ 366.77
102	139004100		Panel, Reinforcement, (2)				$ 20.89
107	139001503		Cover, Dual Fan, Black, Convection				$ 118.76
108	807123002		Motor Assembly, Fan, No He Sensor				$ 203.41
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	807144901		Thermostat, Safety, 110c Deg				$ 58.39
125	139008500		Motor, Convection Fan			Immediately	$ 216.23
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct, Cooling Fan, Lower				$ 73.00
143	318172904		Support, Wire		Appelez-nous	-
152	318338520		Bracket, Lateral Panel, (2)				$ 18.38
161	5304522063		Element, Convection, Dual, 2500w   (Replaces: 139006600)				$ 132.71
166	318298410		Bracket, Base Support, (2)				$ 75.83
170	5304486410		Kit, Anti Tip, W/brkt & Instru				$ 158.50
181	5304500125		Bracket, Support, Rear Side Panel, (2)		Appelez-nous	-
200	808734602		Frame, Drawer Front, Black				$ 108.44
201	808734603		Frame, Drawer Rear, Black				$ 78.67
264	809145303		Bracket, Support, Black, Control Panel		Appelez-nous	-
265	5304500138		Channel, Support, Front		Appelez-nous	-
272	139021700		Tube, Convection Fan				$ 17.72
166A	5304511884		Bracket, Base Support, Lower				$ 65.98
3A	809128201		Panel, Upper Side, Lh				$ 57.17
58A	5304501901		Insulation, Wrapper		Appelez-nous	-
58C	5304500109		Insulation, Oven, Back		Appelez-nous	-
58D	139020301		Insulation, Sides, (2)		Appelez-nous	-
59A	5304506964		Cover, Latch Motor   (Replaces: 139027900)				$ 24.10
5A	5304511891		Leg Assembly, Leveling, Lh, Front				$ 19.85
5B	5304511892		Leg Assembly, Leveling, Rh, Front				$ 19.85
6A	139013314		Rack Assembly, Gliding, W/handle				$ 236.99
6B	139012400		Rack, Oven, Offset, W/handle				$ 181.34
87A	5304507055		Bracket, Cable Connect		Appelez-nous	-
8A	318313601		Bracket, Bake Element				$ 71.45
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NI	5304507054		Harness, Wiring, Main				$ 141.49
NI	5304520783		Harness, Wiring, Surface Power, Hybrid S1/2   (Replaces: 5304500177)				$ 104.90
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316581300		Retainer, Wire				$ 4.26
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	318167300		Clip, Rod				$ 2.84
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	318579001		Bracket, Wire				$ 11.08
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIB	5303311164		Spring				$ 18.95
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIC	5304436864		Washer, Flat				$ 2.84
