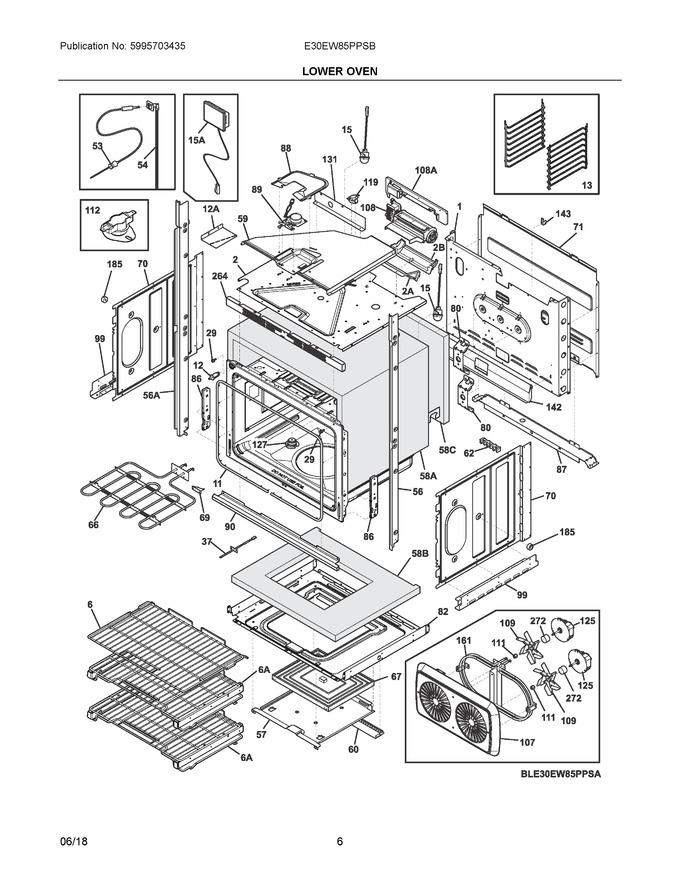

04 - Lower Oven
05 - Doors
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 139017301 | Panel, Main Back, Lower Oven |
|
- | |||||
| 2 | 139028101 | Shield, Insulation, Top, Lower Oven |
|
- | |||||
| 6 | 808713913 | Rack Assembly, Ladder, Cobalt, W/handle (Replaces: 808713914) |
|
$ 143.87 | |||||
| 11 | 807545504 | Seal, Oven Door, Gray |
|
$ 37.16 | |||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| 13 | 808713901 | Ladder Assembly, Kit, Nickel, W/2 Ladders |
|
$ 150.97 | |||||
| 15 | 5304528790 | Lamp Assembly, Round, Halogen, W/lens, W/bulb (Replaces: 139009000) |
|
Immediately | $ 20.56 | ||||
| 29 | 316517601 | Bumper, Main Front, Cobalt Blue |
|
- | |||||
| 37 | 5304504897 | Sensor, Oven Temp Probe |
|
Immediately | $ 48.13 | ||||
| 53 | 5304503737 | Probe, Meat, Black (Replaces: 5304516490) |
|
$ 99.33 | |||||
| 54 | 139017203 | Receptacle Assy, Meat Probe (Replaces: 5304514886) |
|
Immediately | $ 153.09 | ||||
| 56 | 318903676 | Trim, Side Filler, Black, Rh |
|
$ 126.86 | |||||
| 57 | 807988901 | Panel, Service, Bake Element |
|
- | |||||
| 59 | 139015700 | Duct, Cooling, Lower Oven |
|
- | |||||
| 60 | 807285601 | Shield, Heat, Oven Bottom |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 66 | 5304521861 | Element, Broil, 8 Pass, 4000w (Replaces: 139000900) |
|
Immediately | $ 90.25 | ||||
| 67 | 318601604 | Element, Hidden Bake, 2000w (Replaces: 808650402) |
|
Immediately | $ 260.38 | ||||
| 69 | 139022500 | Bracket, Element Guide |
|
- | |||||
| 70 | 139000601 | Shield, Insulation, Sides, (2) |
|
$ 72.05 | |||||
| 71 | 139020000 | Shield, Rear Wire, Main Back |
|
$ 99.23 | |||||
| 80 | 139021101 | Bracket, Support, Chassis/fan |
|
$ 14.89 | |||||
| 82 | 807988802 | Shield, Insulation, Lower |
|
$ 111.99 | |||||
| 86 | 139026900 | Receptacle, Hinge, Dual Spring |
|
$ 32.61 | |||||
| 87 | 139020100 | Bracket, Cable Mtg. |
|
- | |||||
| 88 | 139038700 | Cover, Latch Motor, Lower Oven |
|
- | |||||
| 89 | 139021302 | Motor, Latch Assy., 2 Pole |
|
$ 147.56 | |||||
| 90 | 318903536 | Trim, Oven Bottom, Stainless |
|
$ 194.21 | |||||
| 99 | 318256201 | Bracket, Side, Bottom, (2) |
|
$ 56.70 | |||||
| 107 | 139001502 | Cover, Dual Fan, Cobalt, Convection |
|
$ 80.00 | |||||
| 108 | 139038301 | Blower Assembly, Cooling, Cross Flow, W/baffle |
|
$ 188.21 | |||||
| 109 | 318398302 | Blade, Fan, Convection (Replaces: 139009100) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 19.13 | ||||
| 112 | 5304494446 | Switch, Thermal Cutoff, 145c |
|
$ 43.24 | |||||
| 119 | 318578506 | Thermostat, Safety, 105c |
|
Immediately | $ 58.19 | ||||
| 125 | 139008504 | Motor, Convection Fan, 2400 Rpm, 2 Speed (Replaces: 139008503) |
|
Immediately | $ 170.57 | ||||
| 127 | 5304538693 | Tube Assembly, Vent, W/catalyst (Replaces: 139042600) |
|
Immediately | $ 10.03 | ||||
| 131 | 139022400 | Cover, Center Rear, Cross Flow |
|
- | |||||
| 142 | 139018000 | Shield, Air Deflector, Main Back |
|
- | |||||
| 143 | 318172904 | Support, Wire |
|
- | |||||
| 161 | 5304522063 | Element, Convection, Dual, 2500w (Replaces: 139006600) |
|
$ 132.71 | |||||
| 185 | 318531800 | Spacer, Oven Shield, (2) |
|
$ 12.76 | |||||
| 264 | 139007801 | Trim, Center Vent, Black |
|
- | |||||
| 272 | 139021700 | Tube, Convection Fan |
|
$ 17.72 | |||||
| 108A | 139023900 | Bracket, Fan Mtg., Cross Flow |
|
$ 31.90 | |||||
| 12A | 807641201 | Shield, Door Switch |
|
$ 64.49 | |||||
| 15A | 139001800 | Lamp Assembly, Halogen, 26" Harness, W/g9 40w Bulb |
|
$ 124.22 | |||||
| 2A | 139015900 | Shield, Fan, Cross Flow |
|
- | |||||
| 2B | 139038901 | Housing, Fan, Air Diverter |
|
$ 31.19 | |||||
| 56A | 318903677 | Trim, Side Filler, Black, Lh |
|
- | |||||
| 58A | 139001700 | Insulation, Oven Wrapper, Top & Sides |
|
- | |||||
| 58B | 807989001 | Insulation, Oven Bottom |
|
$ 102.78 | |||||
| 58C | 139021400 | Insulation, Oven Back |
|
- | |||||
| 6A | 808713906 | Glide Rack, Assembly, Cobalt, W/handle |
|
$ 232.47 | |||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 5.67 | |||||
| NI | 318165800 | Spacer, Glass, Foam |
|
$ 17.72 | |||||
| NI | 5304506955 | Box & Wires Assy (Replaces: 318394443) |
|
$ 174.43 | |||||
| NI | 5304501347 | Harness, Wiring, Main |
|
- | |||||
| NI | 5304517285 | Harness Assembly, Filter, Electrical, W/capacitors (Replaces: 5304500988) |
|
$ 38.68 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 807597603 | Screw, Self Tapping, 8-18 X 11/32, (4) |
|
$ 9.22 | |||||
| NI | 5304470882 | Screw, Anti-tip, 8 - 5/8, Black, (2) |
|
$ 13.46 | |||||
| NIA | 318946500 | Bulb, Halogen, G9, 25w, 120v |
|
Immediately | $ 60.44 | ||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NIA | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 | |||||
| NIA | 318231870 | Wiring Harness, Bake Element |
|
$ 83.42 | |||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NIA | 139022101 | Insualtion, Noise Dampening |
|
- | |||||
| NIA | 807181801 | Wiring Harness, Latch Motor, Lower Oven |
|
- | |||||
| NIAA | 318946400 | Bulb, Halogen, G9, 40w, 120v |
|
Immediately | $ 49.32 | ||||
| NIB | 5303288566 | Screw, 8 X 1/4, (4) (Replaces: 5303323130) |
|
$ 2.12 | |||||
| NIBA | 316021119 | Screw, Ab Nickel, 8-18 X 11/16 |
|
- |
