01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Electrical Parts
05 - Wash System
06 - Tub & Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

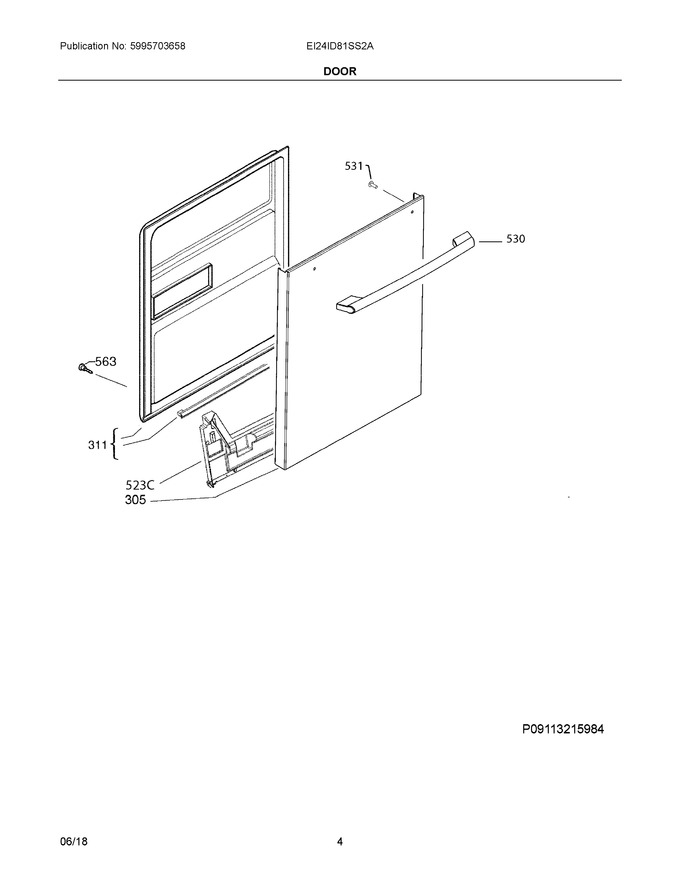

| 305 | 117495162 | Outer Door, Stainless (Replaces: 117495160) |
|
$ 846.59 | |||||
| 311 | A00010702 | Liner, Door |
|
$ 397.30 | |||||
| 530 | 241881325 | Handle, Door, Stainless |
|
$ 343.04 | |||||
| 531 | 154633601 | Screw, Handle Mtg., (2) |
|
$ 14.89 | |||||
| 563 | 405538278 | Screw Kit, Door, 3.5x13/19/40, (6/3/5 Pcs), Complete |
|
$ 16.34 | |||||
| 523C | 807194801 | Support, Kickplate |
|
$ 129.41 | |||||
| NI | 405537692 | Screw, Door Handle, M4 X 10mm Ph |
|
$ 7.23 | |||||
| NI | 405526082 | Screw, Kit, 4-2 X 11, (6pcs), Detergent Disp. |
|
$ 6.51 | |||||
| NI | 5304533456 | Screw, Kickplate, 3-5 X 9, (2) (Replaces: 405530674) |
|
$ 3.50 | |||||
| NI | 405530675 | Plate, Door Handle, (2) |
|
- |
