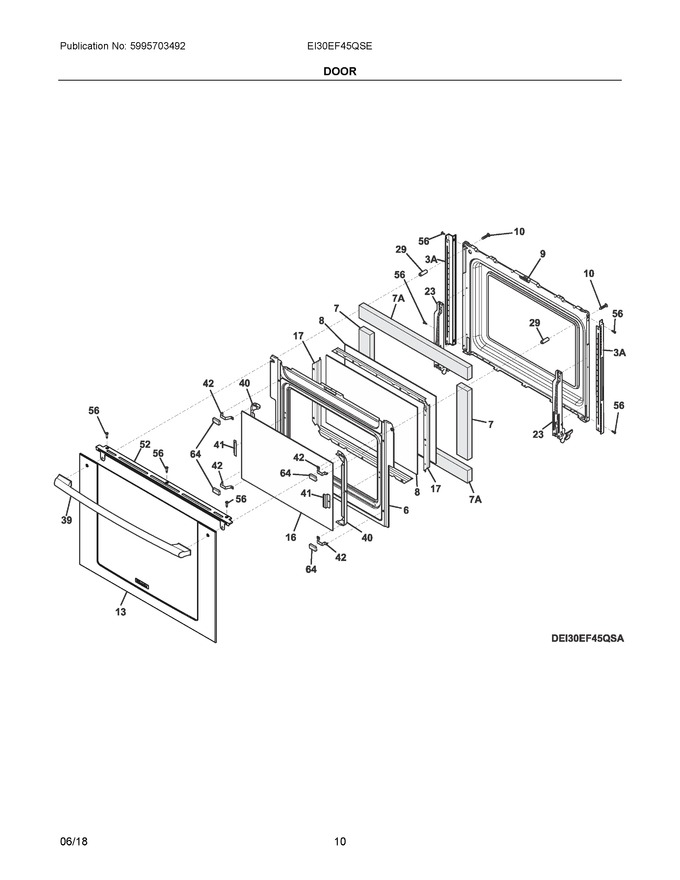

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139006905		Baffle, Door				$ 121.34
7	318372017		Insulation, Door				$ 16.30
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	139000403		Liner, Oven Door				$ 160.88
10	5304507924		Screw, Handle Mtg, 10-24 X 2.188, (2)   (Replaces: 316513301)			Immediately	$ 16.48
13	5304515540		Door Assembly, Outer, Stainless/black, W/trim & Badge				$ 480.73
16	316446401		Glass, Oven Door, Airwash   (Replaces: 316446400)			Immediately	$ 125.13
17	318264731		Spacer, Glass, (2)				$ 72.05
23	316575910		Hinge, Oven Door, Pink				$ 125.89
29	139023400		Spacer, Door Handle, (2)				$ 20.48
39	316380802		Handle, Door, Stainless				$ 250.86
40	318242702		Bracket, Glass Holder, Door, (2)				$ 19.72
41	318370602		Bracket, Glass Panel, (2)				$ 13.65
42	318382302		Bracket, Glass Retainer, (4)				$ 50.81
52	807437405		Trim, Door Top, Black, Lower Door				$ 87.89
56	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
64	318165800		Spacer, Glass, Foam				$ 17.72
3A	807455807		Trim, Door, Black, Side				$ 54.58
7A	318372016		Insulation, Door				$ 17.72
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	316483102		Label, Anti-tip				$ 3.56
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
