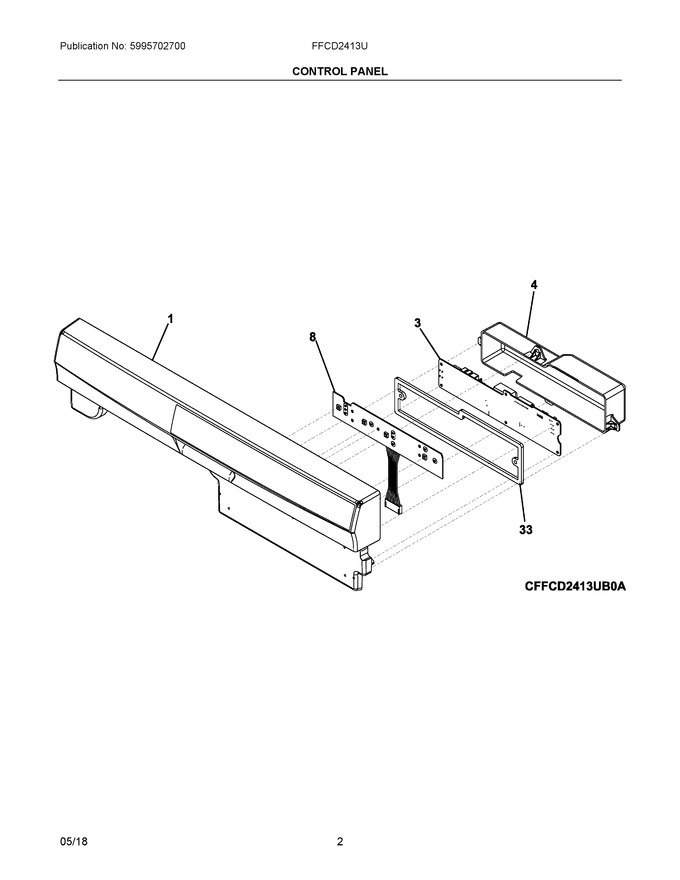

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304517657 | Control Panel, Assembly, Black, W/overlay-gskt |
|
Immediately | $ 244.51 | ||||
| 3 | 5304531745 | Board, Control (Replaces: 5304517215) |
|
Immediately | $ 99.00 | ||||
| 4 | 5304506895 | Cover, Control |
|
$ 27.55 | |||||
| 8 | 5304517207 | Control Assembly, User Interface |
|
Immediately | $ 88.05 | ||||
| 33 | 5304506894 | Gasket, Control Cover |
|
$ 14.59 | |||||
| NI | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| NI | 5304504853 | Harness, Wiring, Main |
|
Immediately | $ 126.70 | ||||
| NI | 808612226 | Energy Guide |
|
- |
