01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

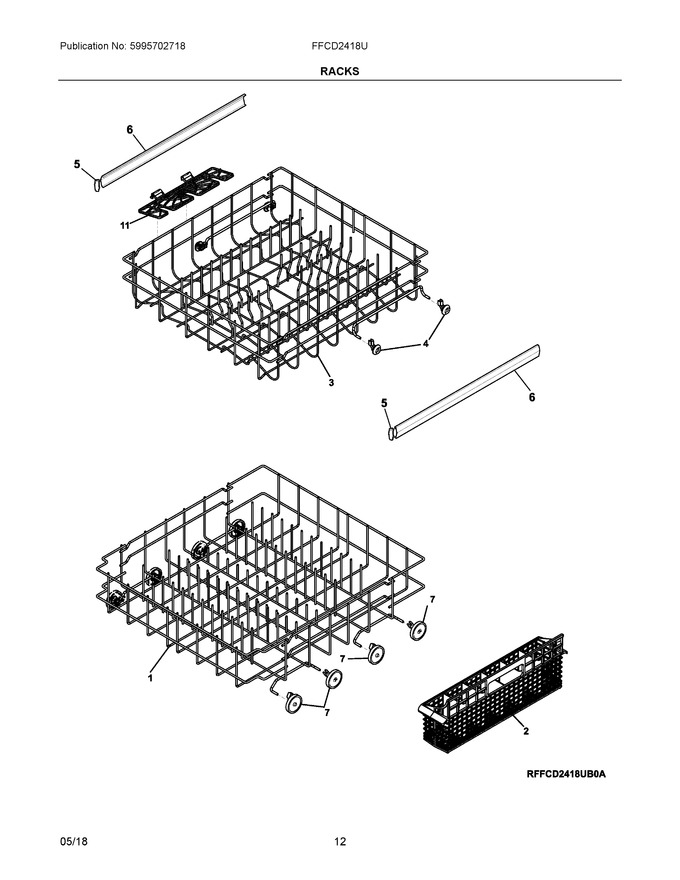

| 1 | 5304535379 | Rack Assembly, Lower, Grey (Replaces: 154331606) |
|
Immediately | $ 124.78 | ||||
| 2 | 5304509753 | Basket, Silverware (Replaces: 5304506681) |
|
Immediately | $ 36.87 | ||||
| 3 | 5304535380 | Rack Assembly, Upper, Grey (Replaces: 5304517201) |
|
Immediately | $ 150.71 | ||||
| 4 | 154522902 | Wheel Assy., Upper Rack, (4) (Replaces: 154494502) |
|
$ 39.54 | |||||
| 5 | 5304506510 | Cap, Rack Slide |
|
Immediately | $ 7.23 | ||||
| 6 | 154597801 | Slide, Rack, Upper, (2) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy, Grey, Lower Rack, (8) (Replaces: 154174503) |
|
Immediately | $ 12.75 | ||||
| 11 | 5304532945 | Cup Shelf, Stemware (Replaces: 5304506507) |
|
$ 7.42 | |||||
| 4A | 154522902 | Wheel & Bushing Assy, Grey, Upper Rack, (8) |
|
$ 39.54 | |||||
| NI | 5304535550 | Nameplate, Rack Spacer, Grey (Replaces: 5304506527) |
|
$ 2.66 |
